Design your roof, your way. Mix and match GAF shingle styles and colors along with siding, trim and doors to create the perfect look for your home.
StainGuard Plus™ Algae Protection Limited Warranty
Protect your roof investment with algae resistance so powerful it allows us to offer a 25-year limited warranty against blue-green algae discoloration on many of our most popular products, including Timberline HDZ® Shingles.¹
WindProven™ Limited Wind Warranty
When installed with the required combination of four qualifying GAF accessories, GAF shingles with LayerLock® technology qualify for the WindProven™ Limited Wind Warranty with no maximum wind speed limitation.²
Layerlock® Technology
The StrikeZone® nailing area provides up to 99.9% nailing accuracy. It's so easy to hit that a roofer placed 999 out of 1,000 nails correctly in our test.³
EcoDark® Granules

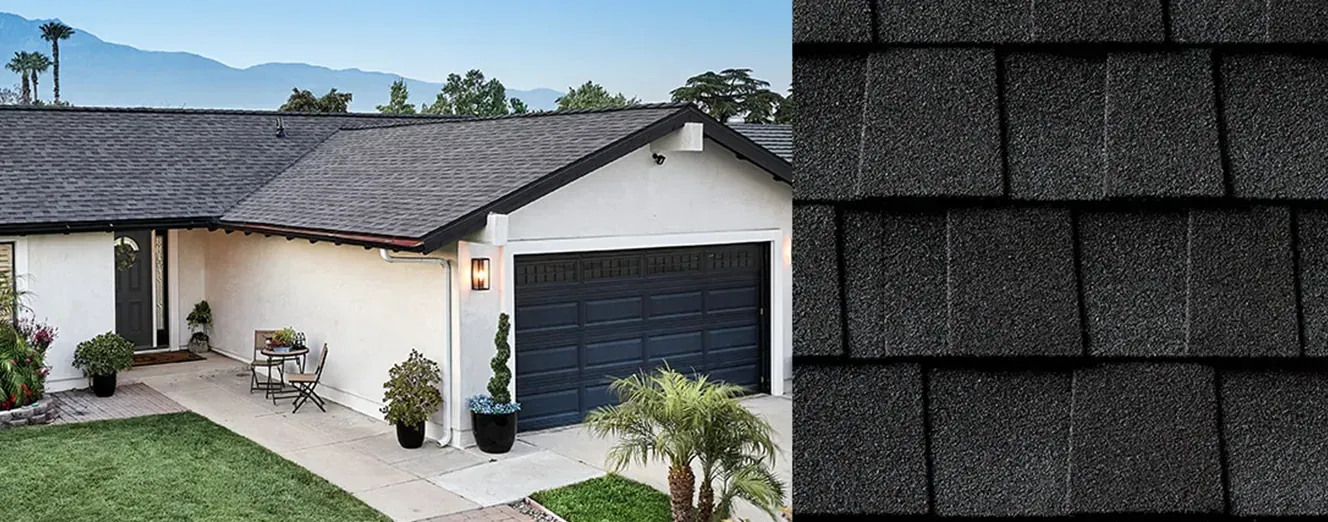

Newly formulated EcoDark® Granules provide deep, rich colors including Timberline HDZ® RS Charcoal, the darkest highly reflective shingle color available.
¹ - 25-year StainGuard Plus™ Algae Protection Limited Warranty against blue-green algae discoloration is available only on products sold in packages bearing the StainGuard Plus™ logo. See GAF Shingle & Accessory Limited Warranty for complete coverage and restrictions.
² - 15-year WindProven™ Limited Wind Warranty on Timberline® Shingles with LayerLock® Technology requires the use of GAF Starter Strips, Roof Deck Protection, Ridge Cap Shingles, and Leak Barrier or Attic Ventilation. See GAF Roofing System Limited Warranty for complete coverage and restrictions Visit gaf.com/LRS for qualifying GAF products. For installations not eligible for the WindProven Limited Wind Warranty, see GAF Shingle & Accessory Limited Warranty for complete coverage and restrictions.
³ - Results based on study conducted by Home Innovation Research Labs, an independent research lab, comparing installation of Timberline HD® Shingles to Timberline HDZ® Shingles on a 16-square roof deck using standard 4-nail nailing pattern under controlled laboratory conditions. Actual results may vary.
All Dimensions are Nominal
- Pieces / Square: 64
- Bundles/Square: 3
- Nails/Square: 256
- Exposure: 5 5/8"
- Dimension: 13 1/4" x 39 3/8"
- Durability & Toughness: Advanced Protection Shingle with GAF Dura Grip Adhesive
- Shingle Style: Wood-Shake Look
- Shingle Type: Specialty Architectural
- Extreme Weather Impact Rated: No
- Fire Rating: Highest Rating - Class A
- Material: Fiberglass Asphalt Construction
- Wind Rating: Eligible for the WindProven™ Limited Wind Warranty when installed with four required GAF accessory products.
Energy Rating
- Cool Roof Ratings Council (CRRC): CRRC-rated
- Miami 21 (Florida Building Code): Yes
Codes
- FBC: TDI
- ICC: ESR-1475
- ICC AC438: ESR-3267
- TDI: Meets requirements of the Texas Department of Insurance
- Fire - UL Listed to ANSI/UL 790 Class A
- Wind - ASTM D7158, Class H
- Wind - ASTM D3161, Class F
- National - ASTM D3462**
- National - Classified in accordance with ICC-ES AC438
- Regional - Miami-Dade County Product Control Approved
- Regional - State of Florida Approved
- Regional - Texas Department of Insurance Listed
- Regional - ICC-ES ESR- 1475
- Regional - ICC-ES ESR- 3267
- Special Feature - Cool Roof Rating Council (CRRC) Rated*****
- Special Feature / Regional - CA Title 24
- Special Feature / Regional - City of LA / LA County
- Passes UL 2218 Impact-Resistance Test with Class 3 Rating
**ASTM D3462 - Periodically tested by independent and internal labs to ensure compliance with ASTM D3462 at time of manufacture.
*****Cool Roof Rating Council (CRRC) Rated - Applies to Copper Canyon, Birchwood, and Golden Amber only for Timberline HDZ®.
