Seamless Tile Integration and Lasting Protection
Location:
Auburn, CA
Materials Used:
Timeline:



The Discovery Phase

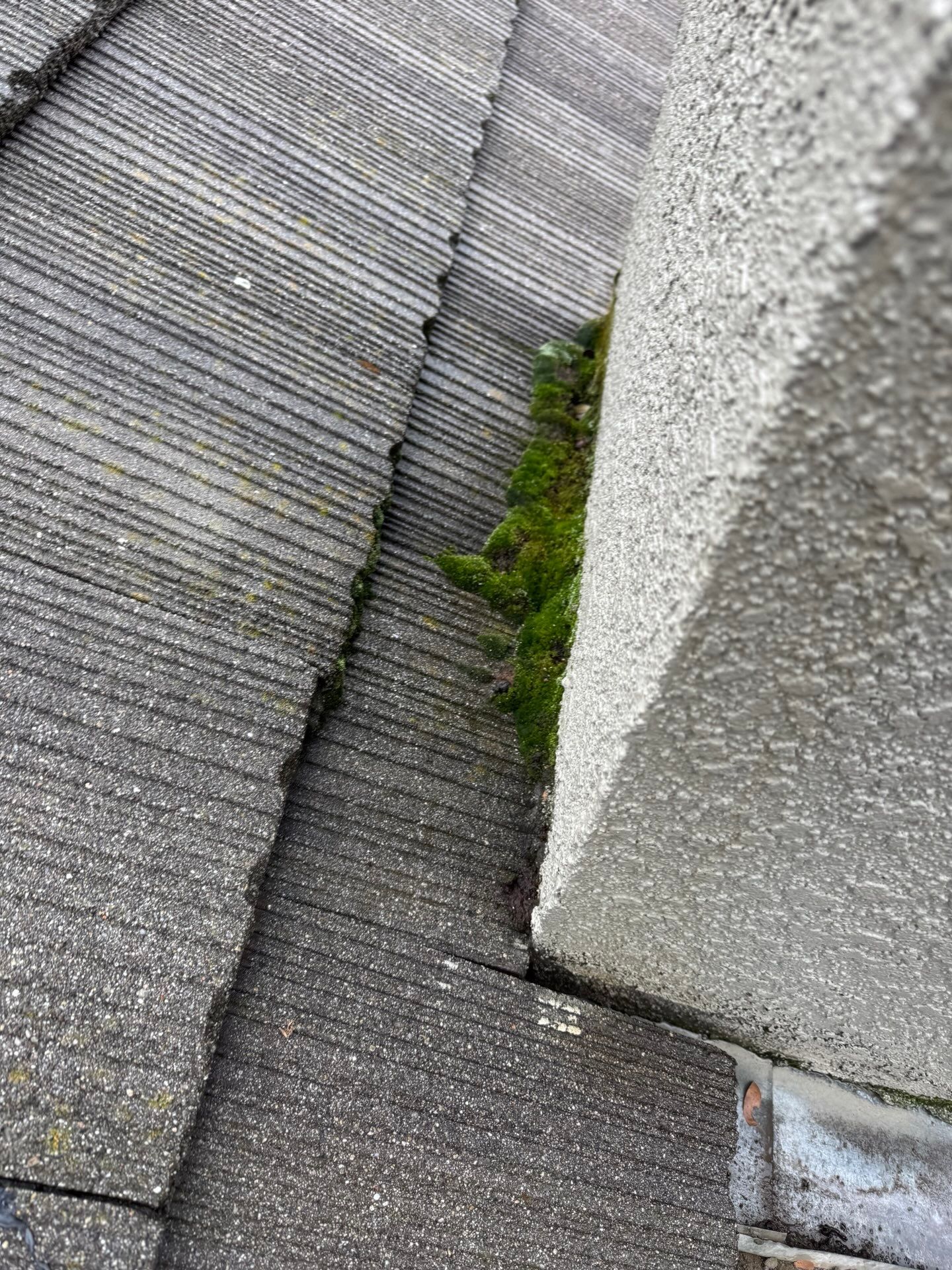

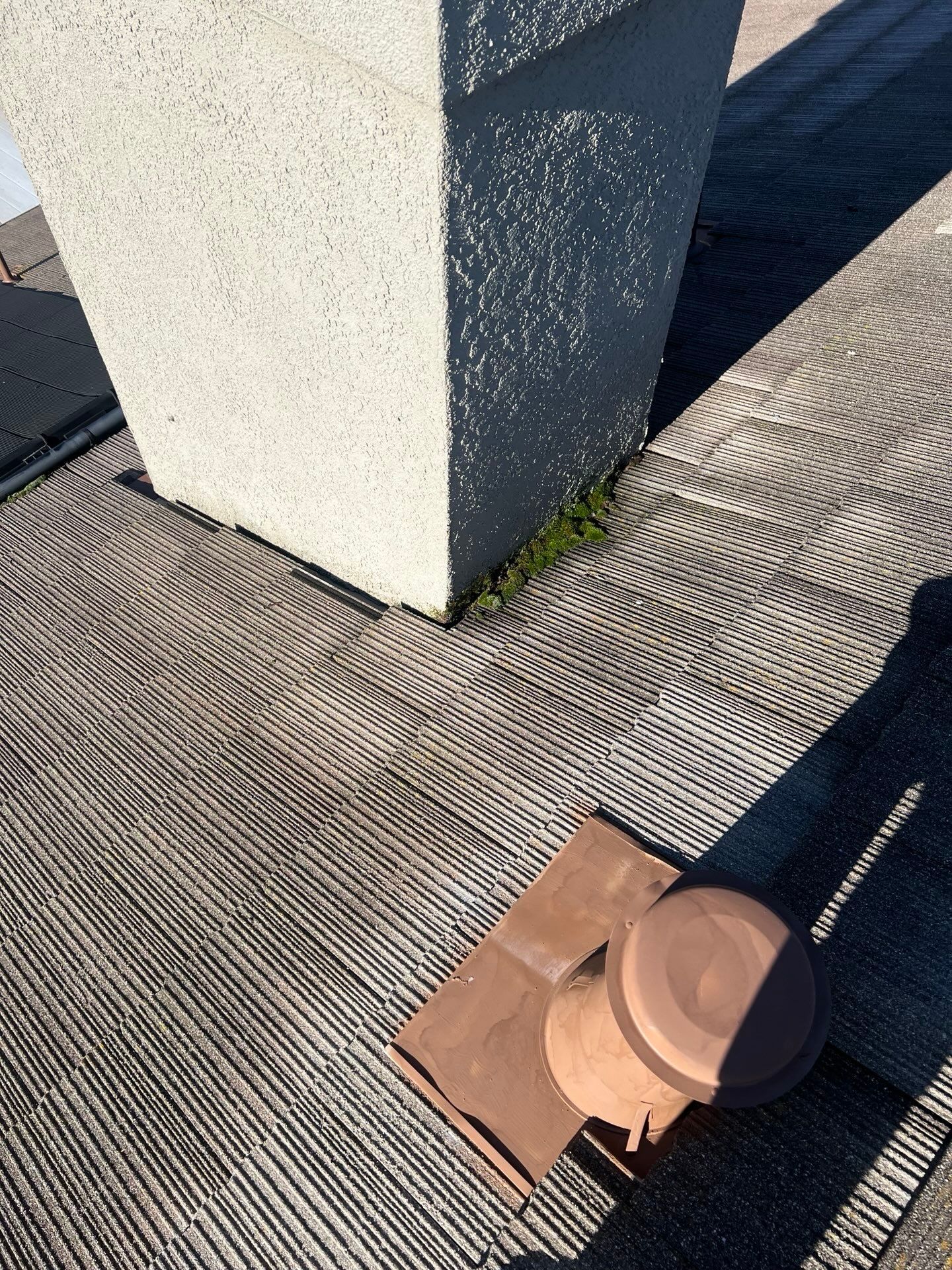

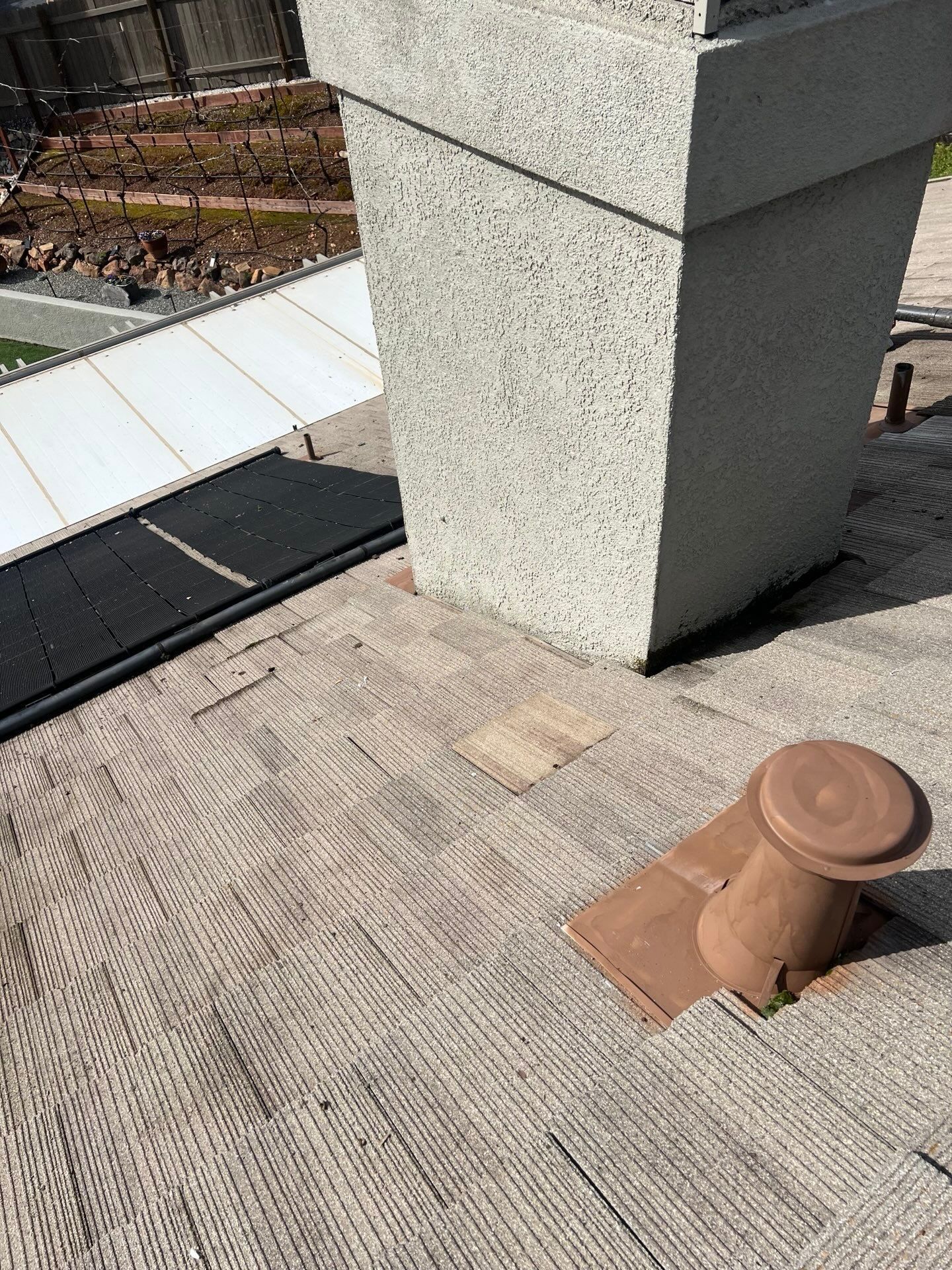

A leaking chimney can cause severe damage to a home's structural decking and interior framing long before water spots appear on the ceiling. For this property, the concrete tile roof required targeted intervention to resolve a stubborn water intrusion issue around the stucco chimney stack. This chimney roof leak repair in Auburn, CA demanded a careful, methodical demolition of the surrounding roofing materials to access the compromised substrate below, ensuring our new waterproofing measures would seamlessly integrate with the existing architecture and flashing.

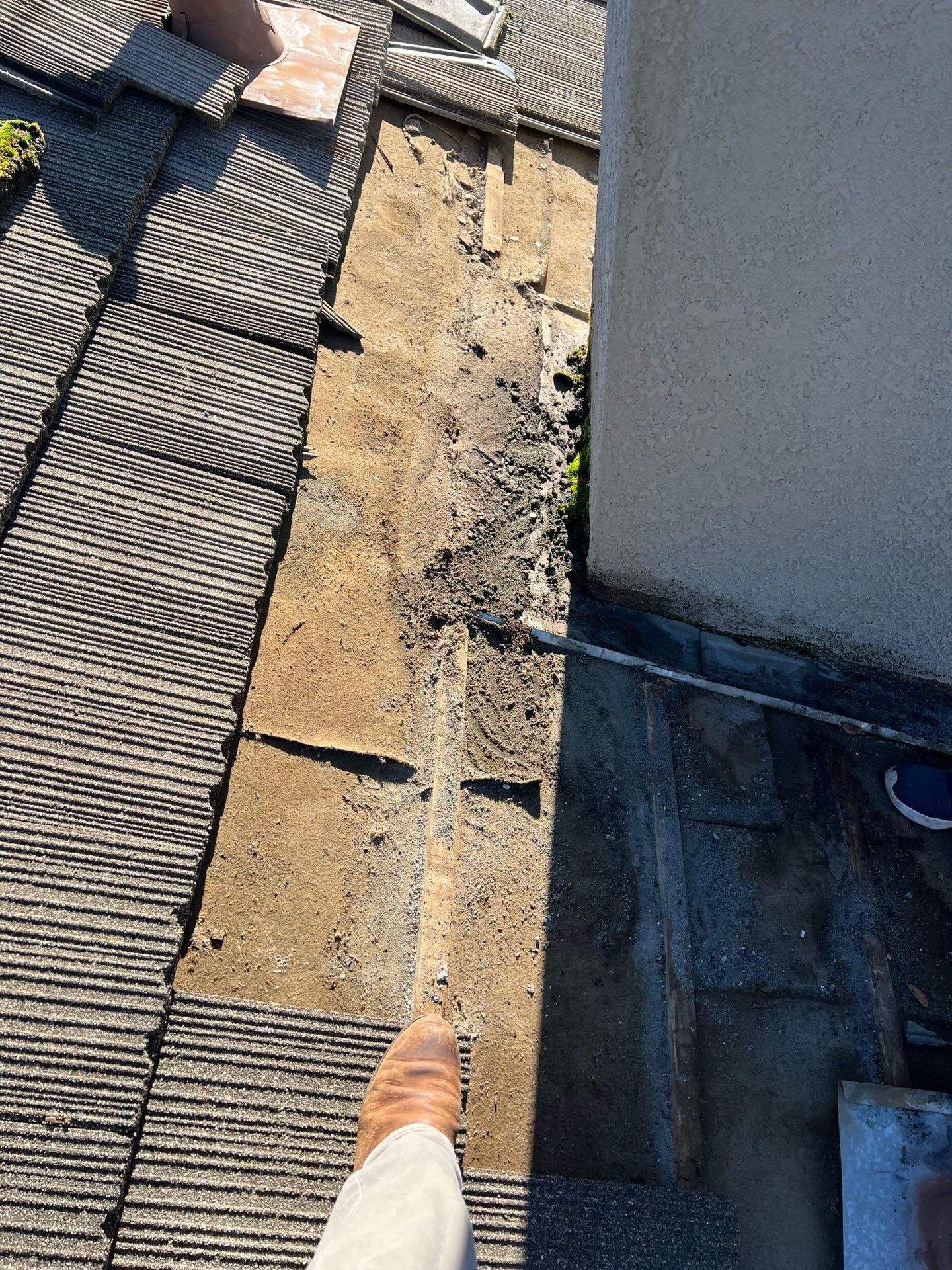

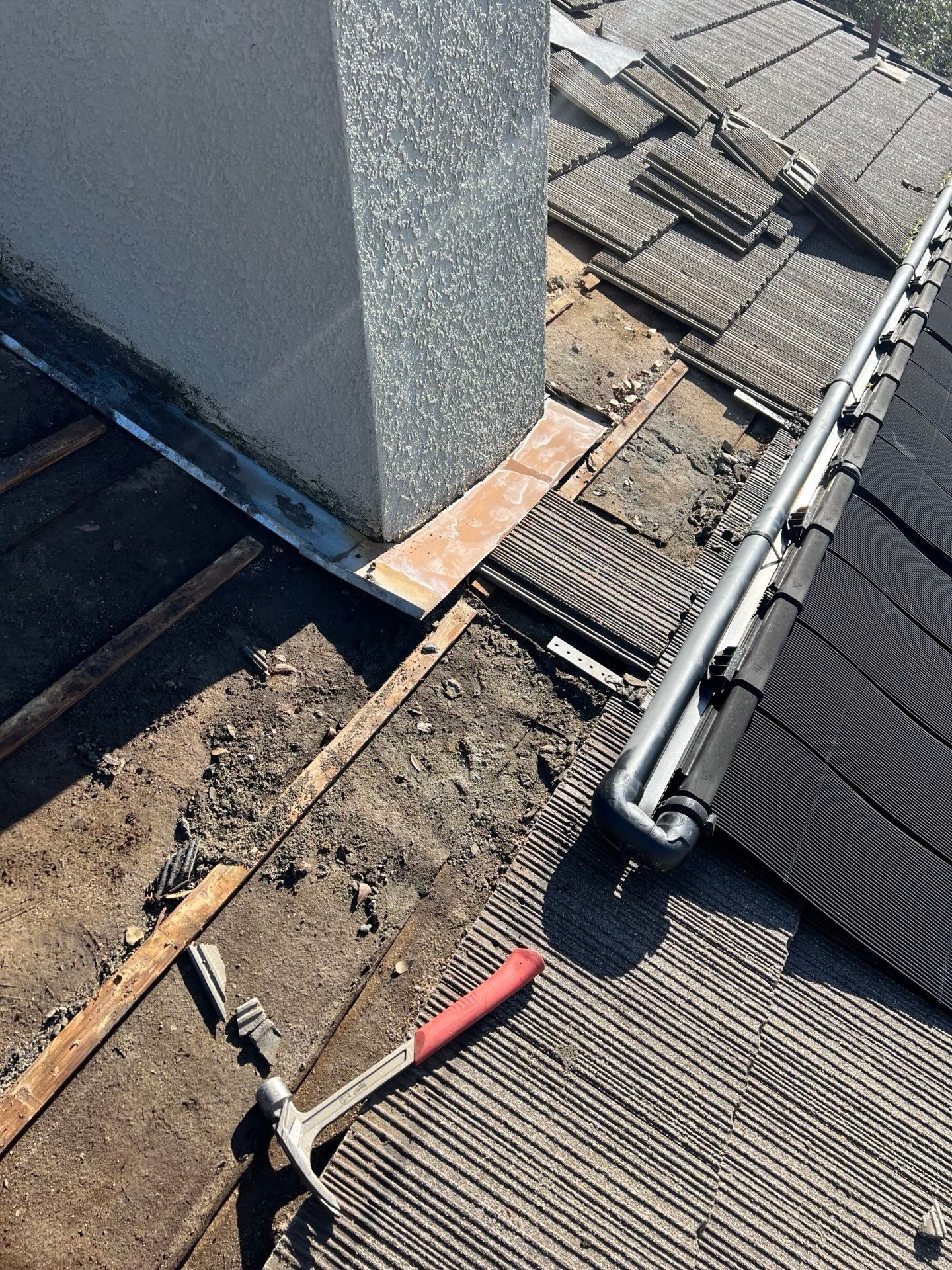

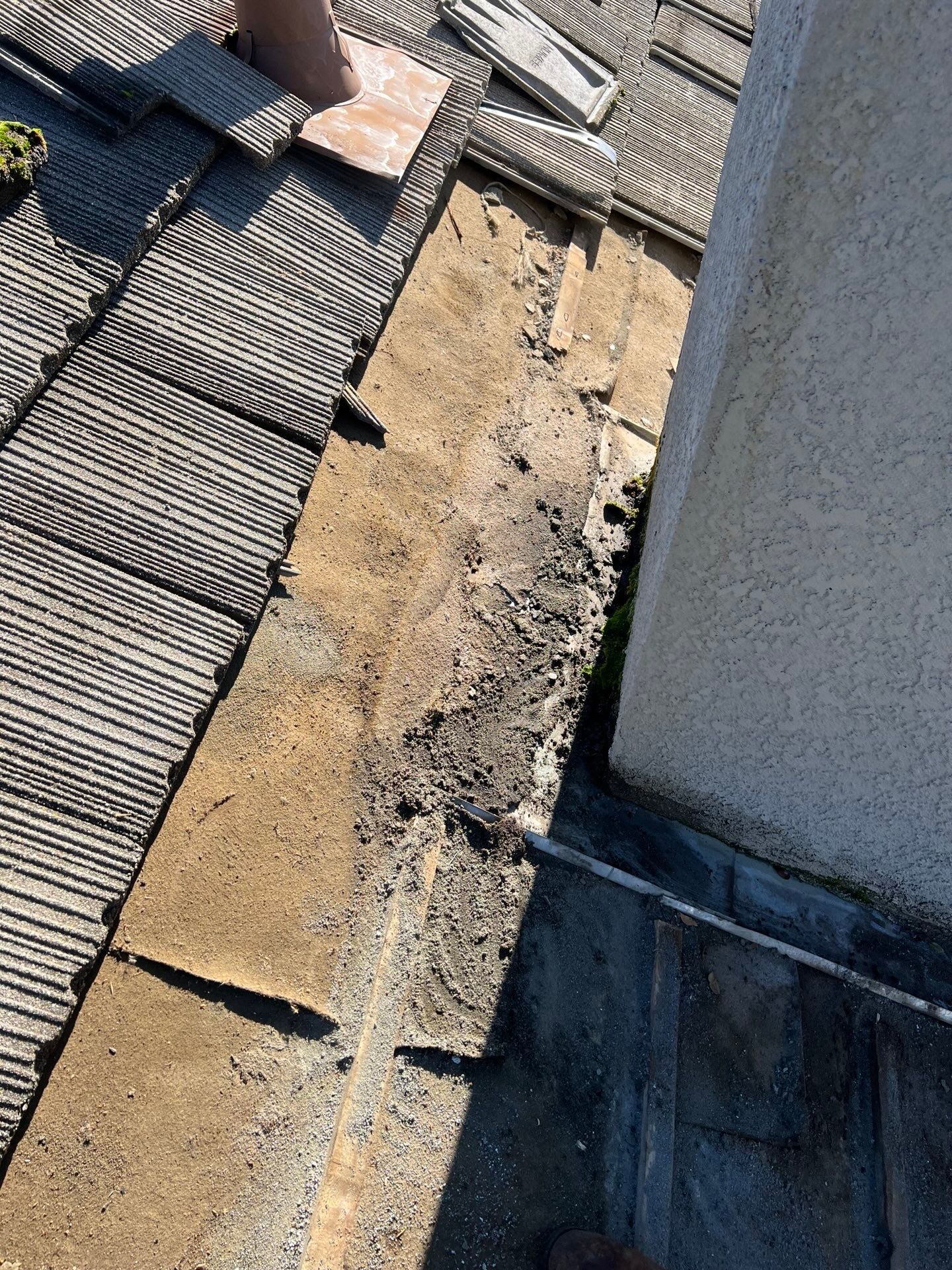

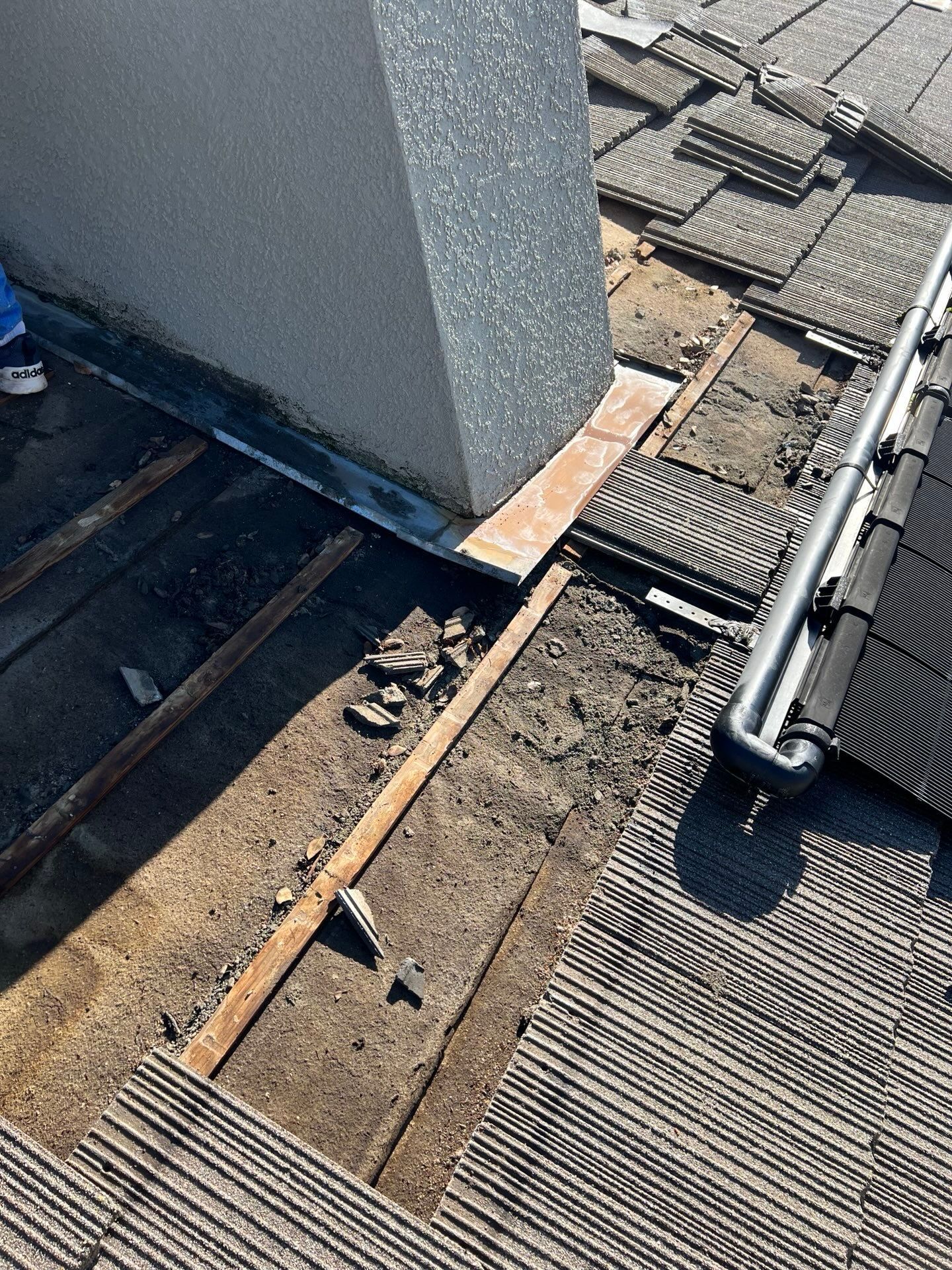

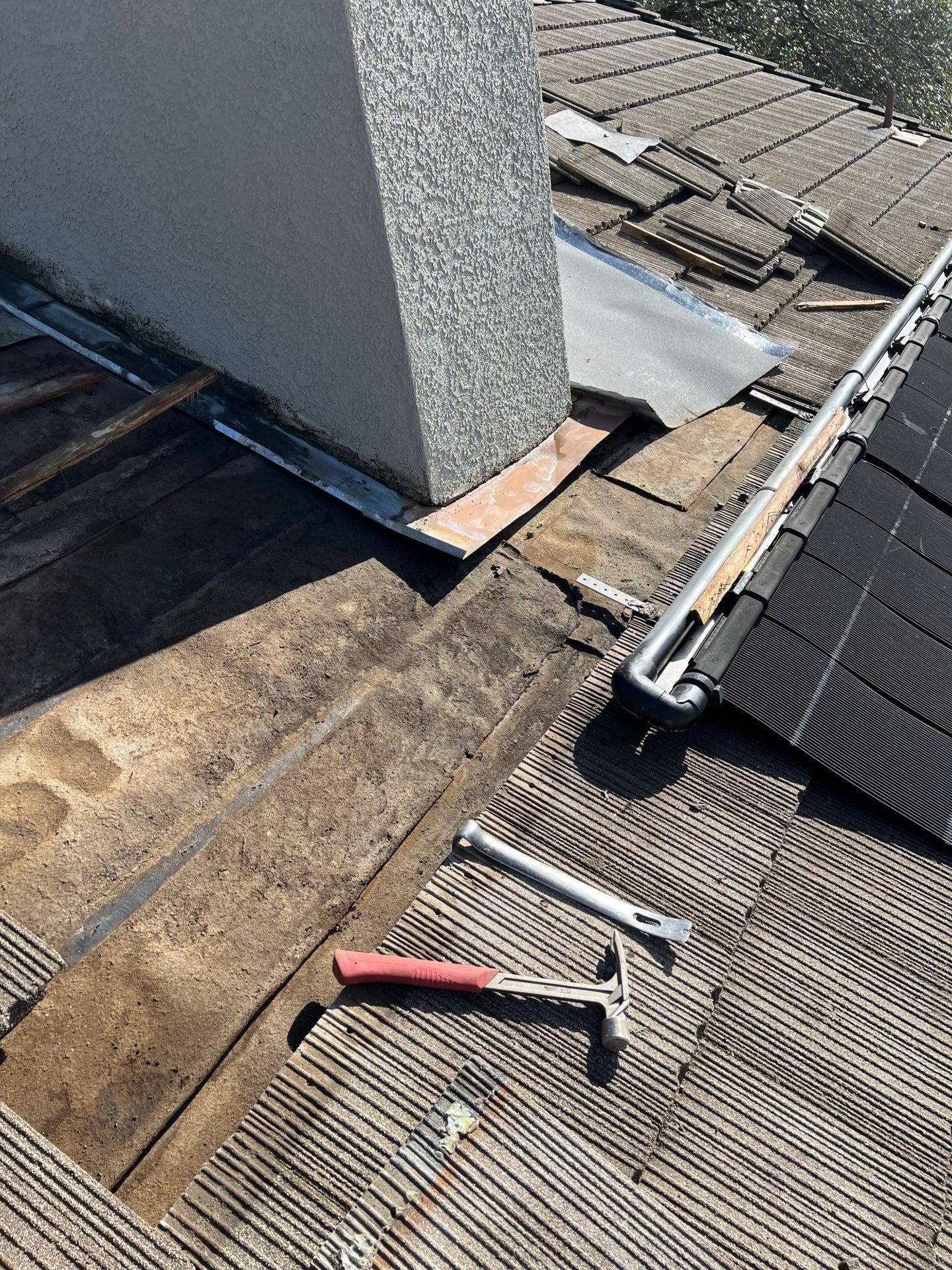

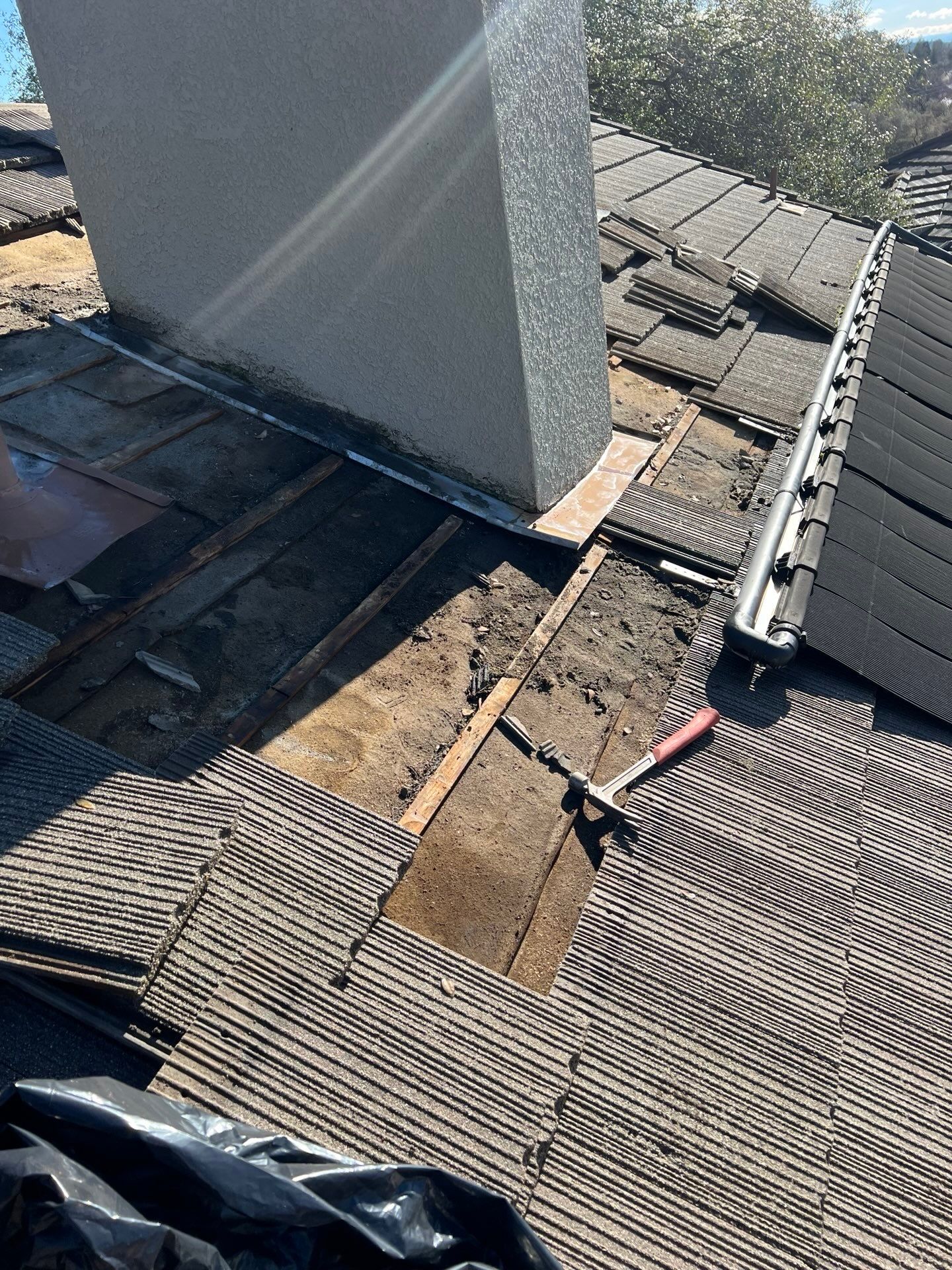

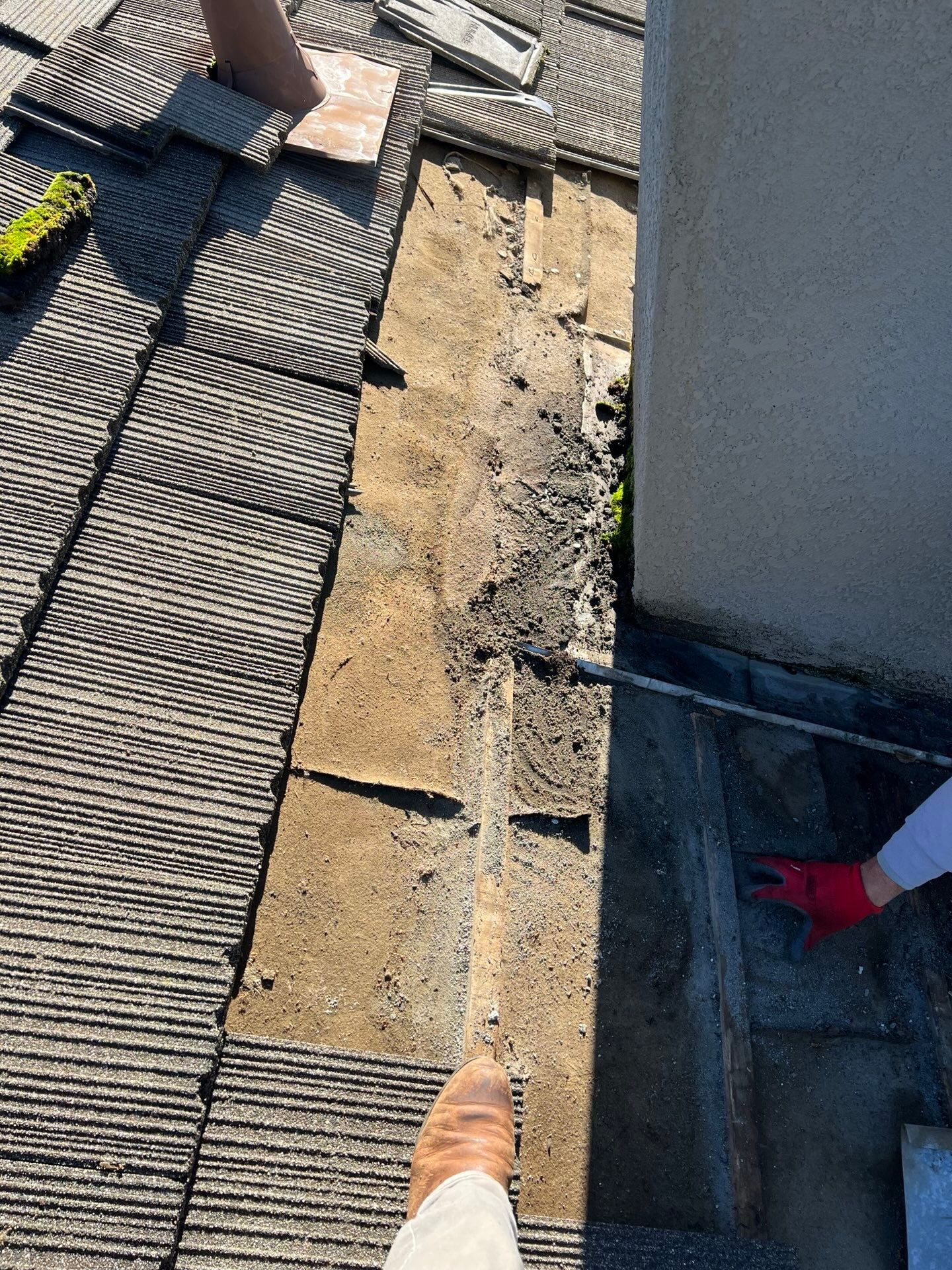

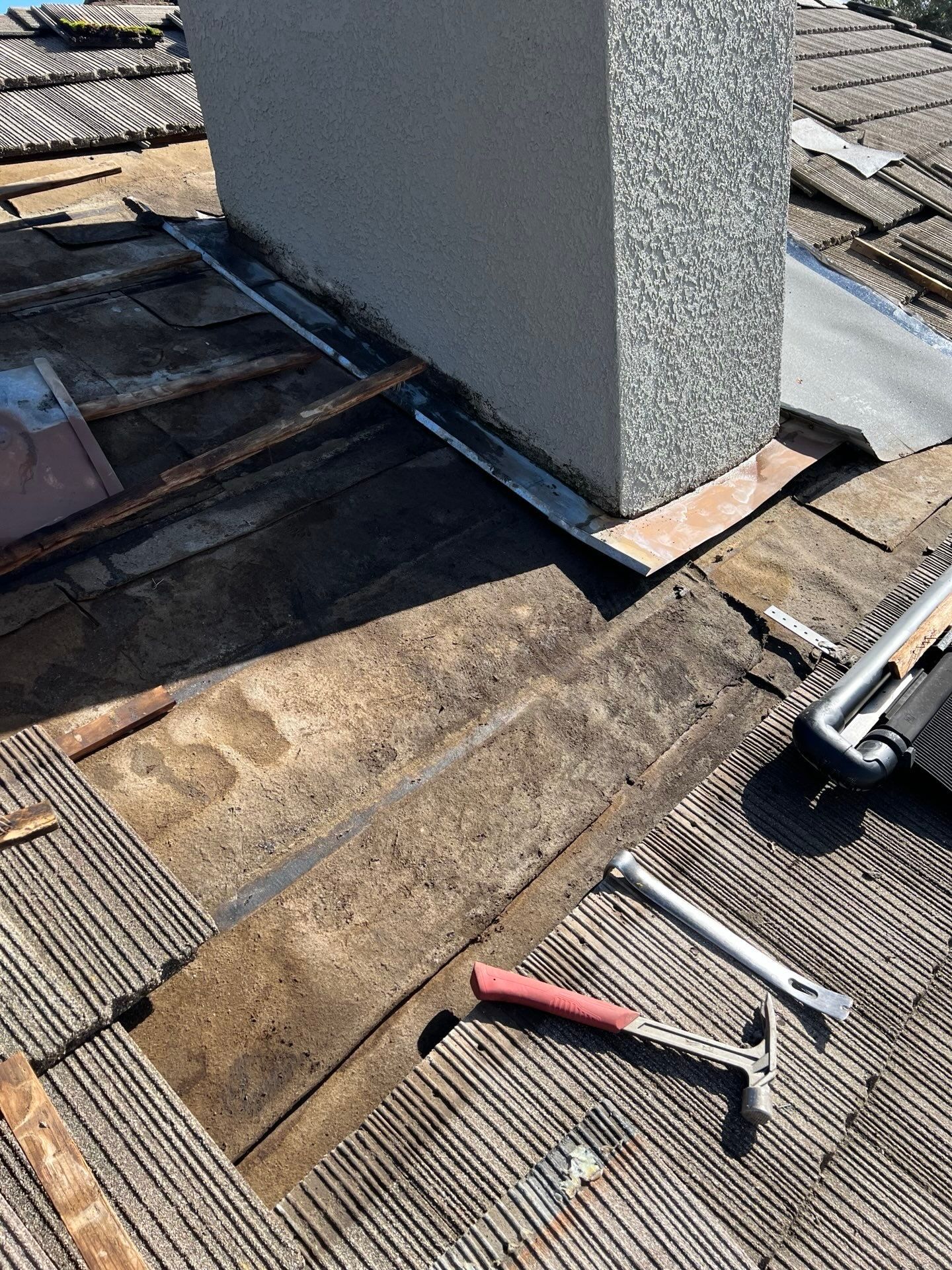

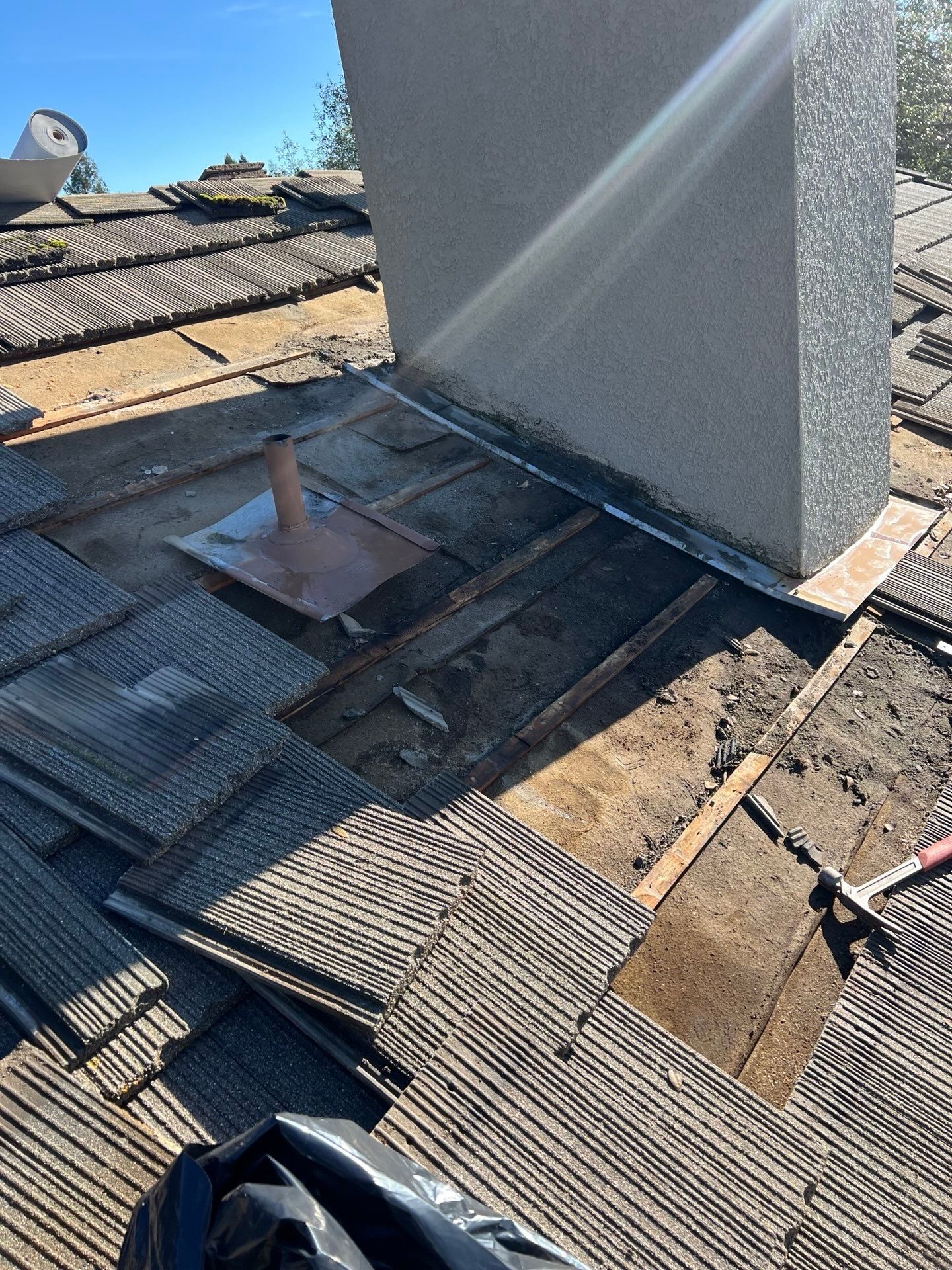

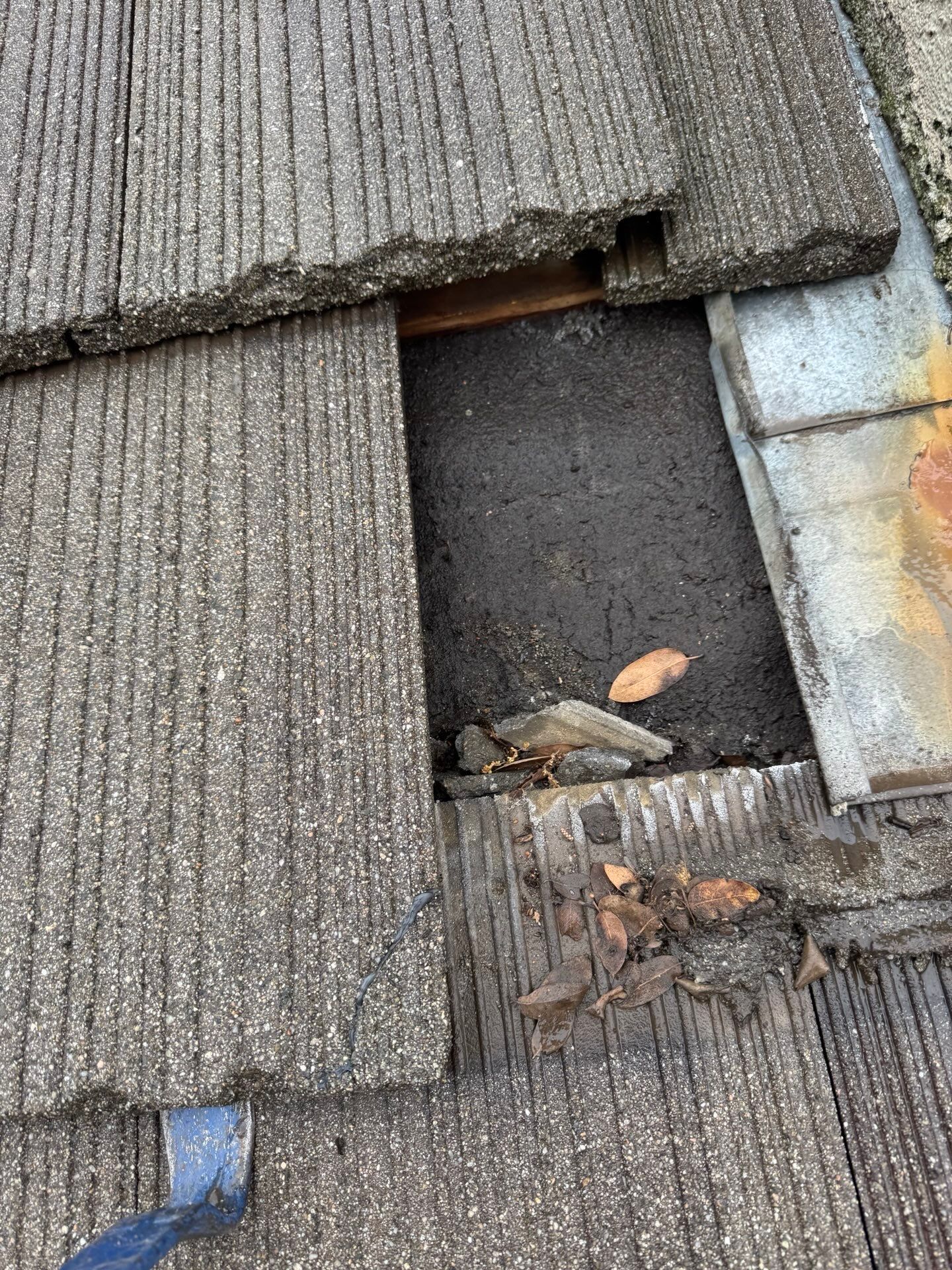

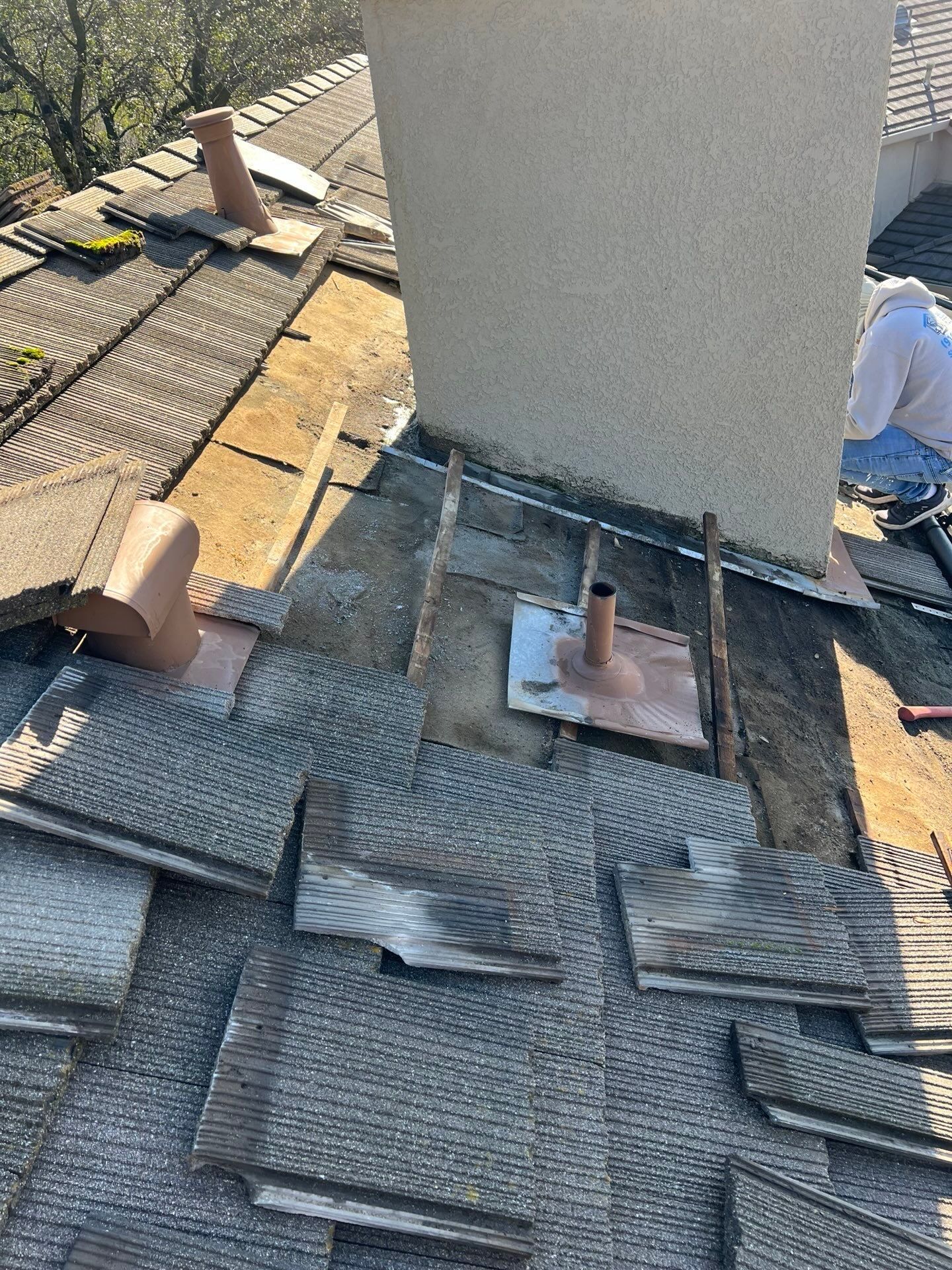

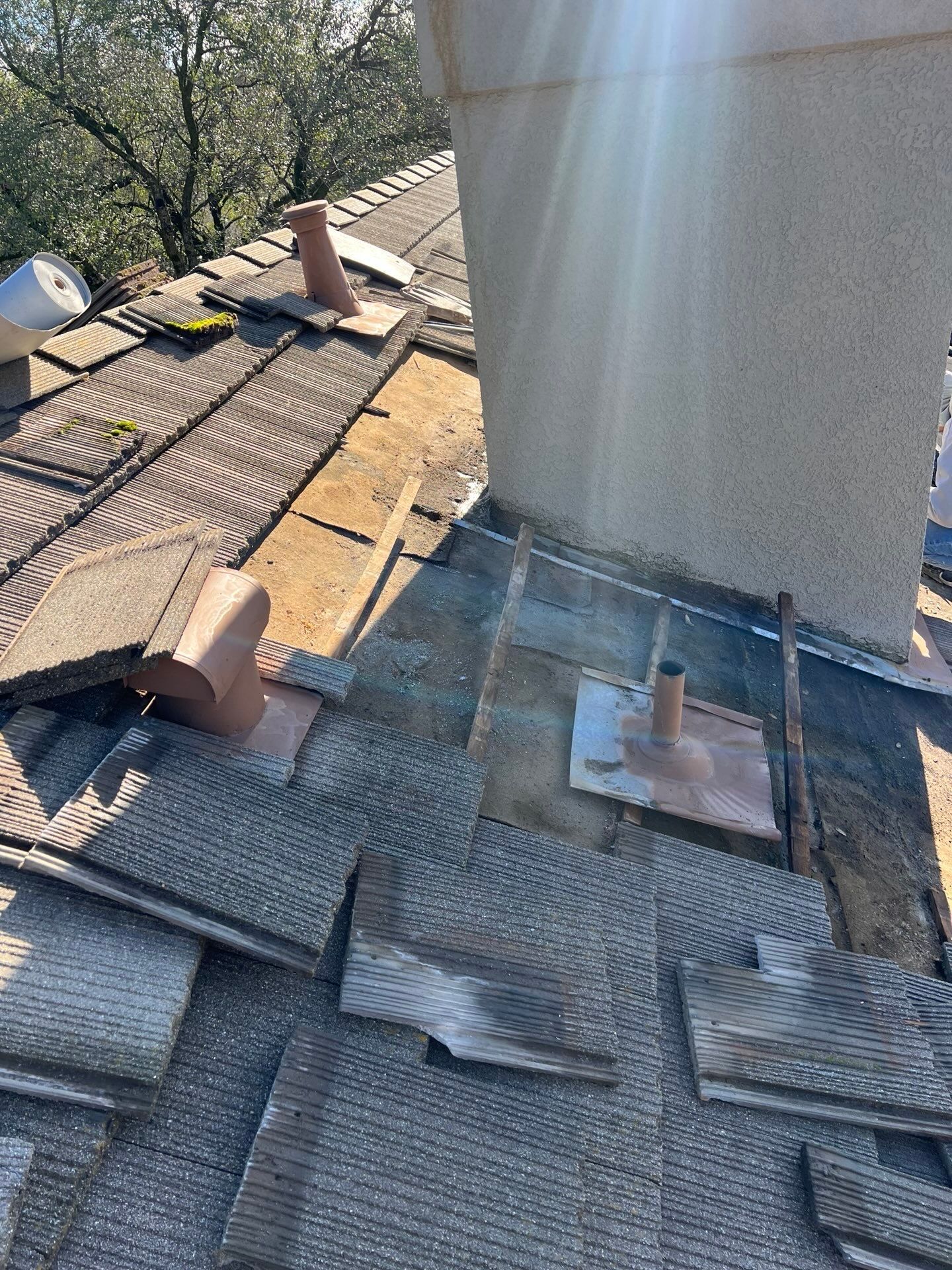

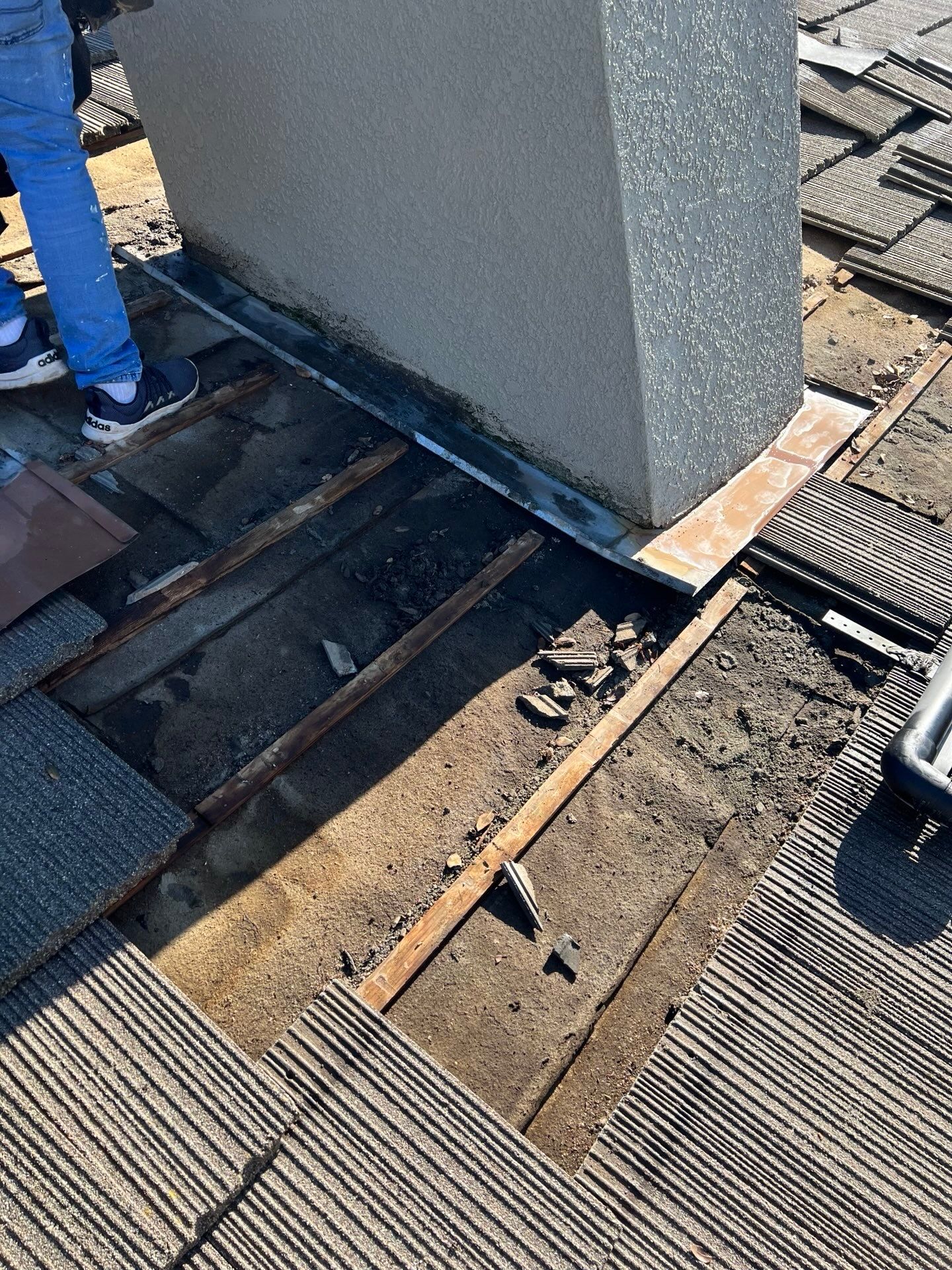

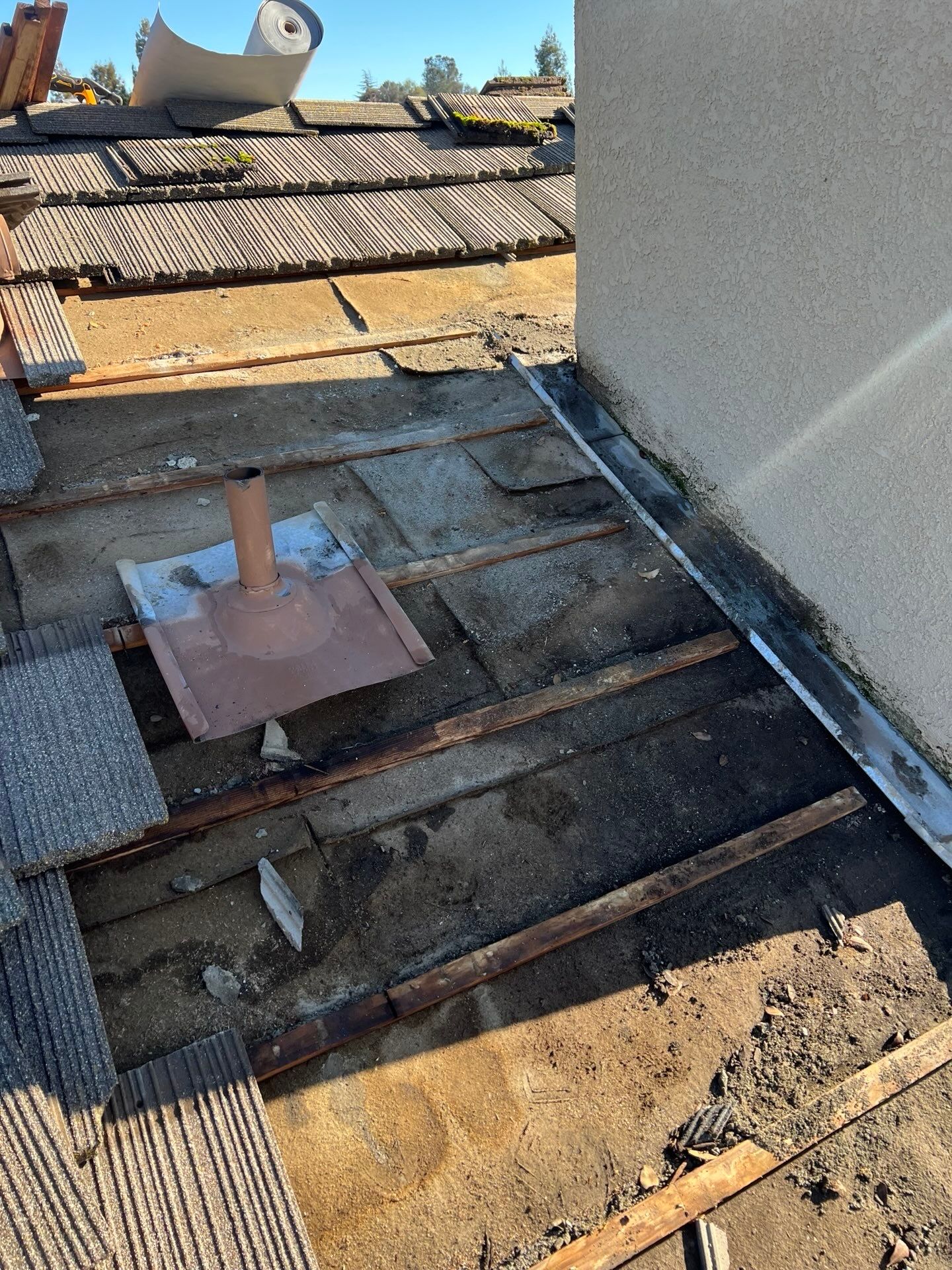

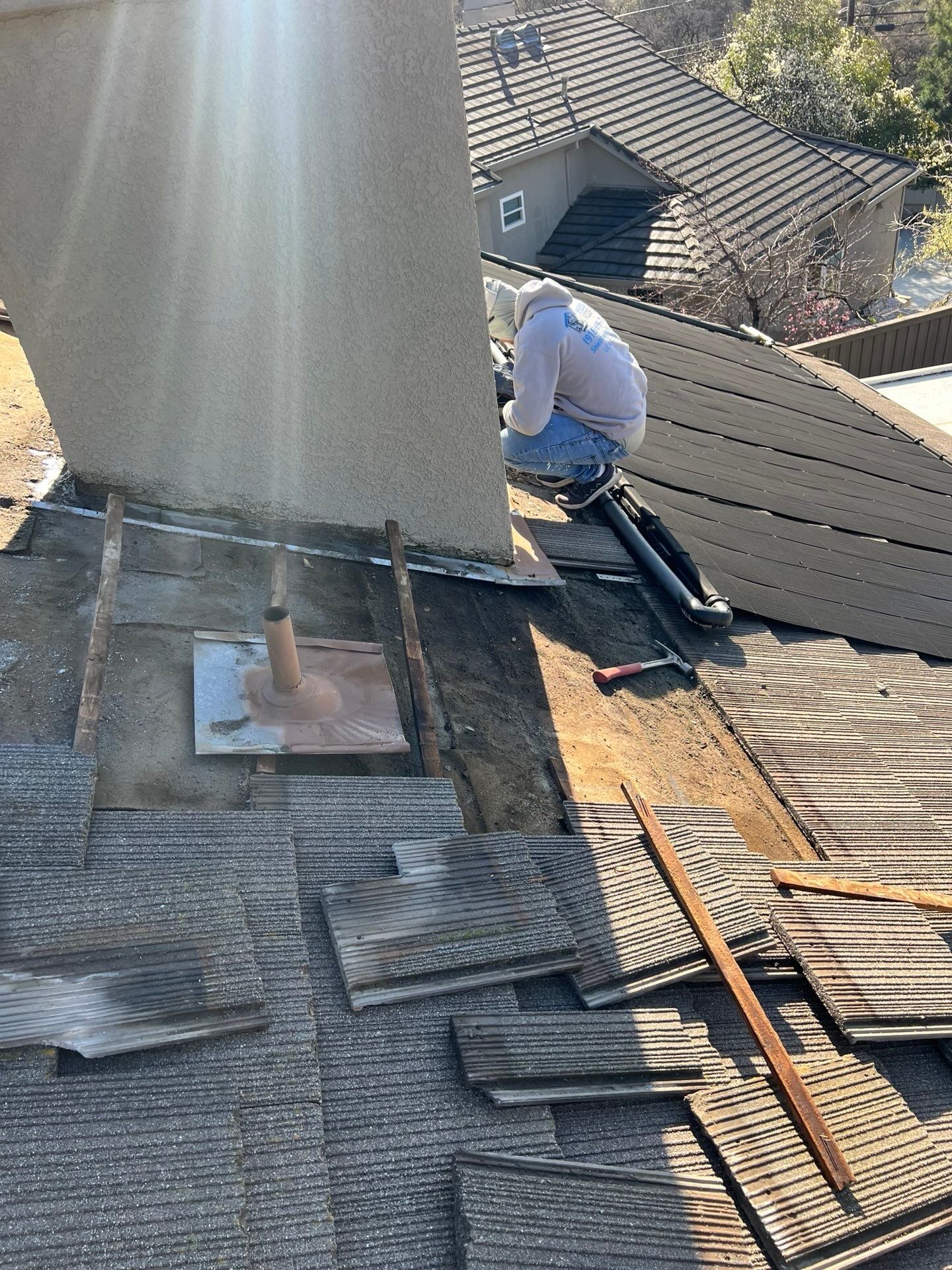

Our crew initiated the remediation by carefully lifting and removing the heavy concrete roofing tiles within a 6’ x 6’ perimeter surrounding the chimney stack to expose the vulnerable underlayment. Once the tiles were safely set aside, we stripped out the old wooden battens. The exposed structural deck was heavily soiled with accumulated dust, old felt, and organic debris, which we thoroughly cleared away to provide a pristine substrate for the repair.

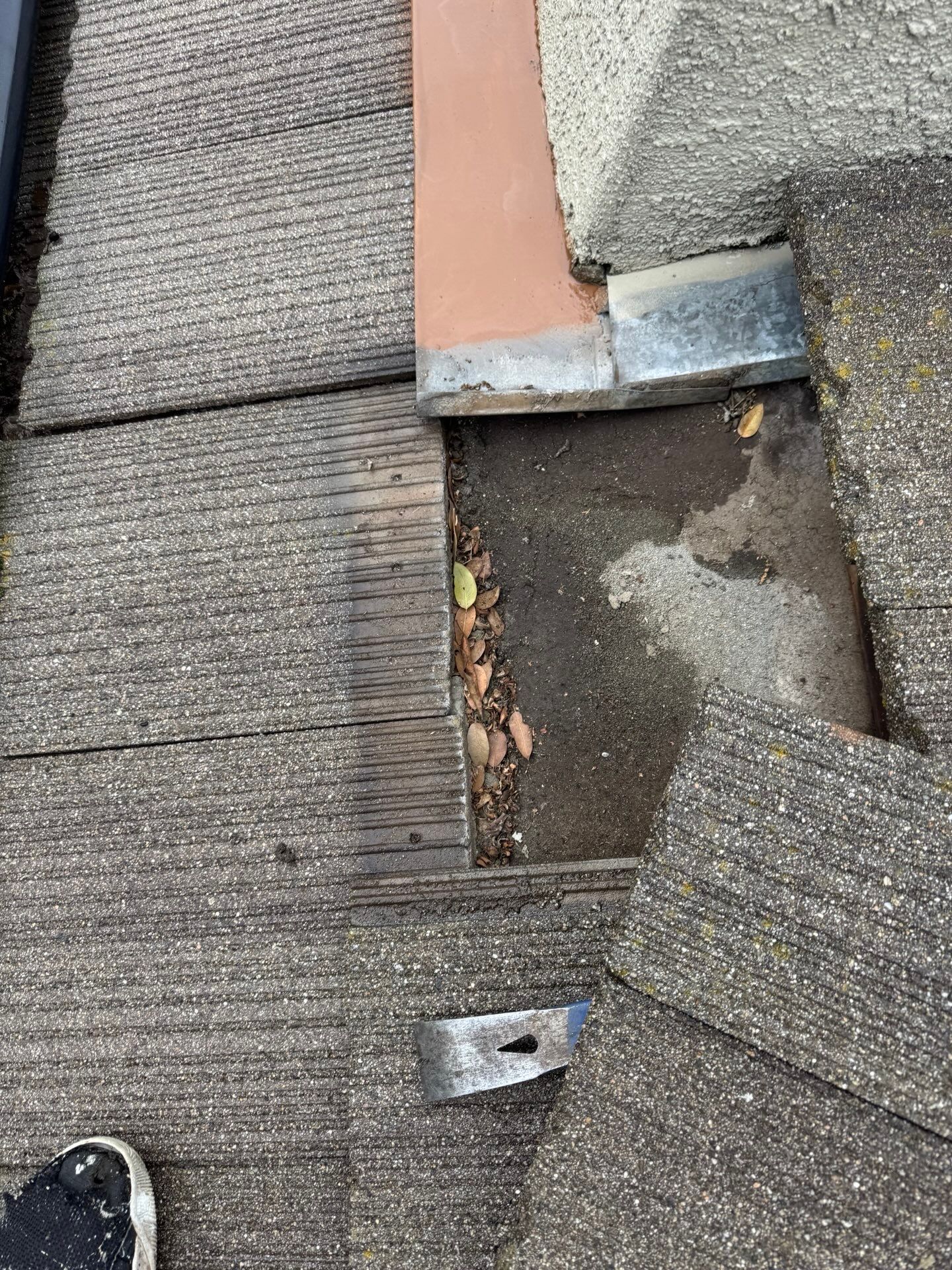

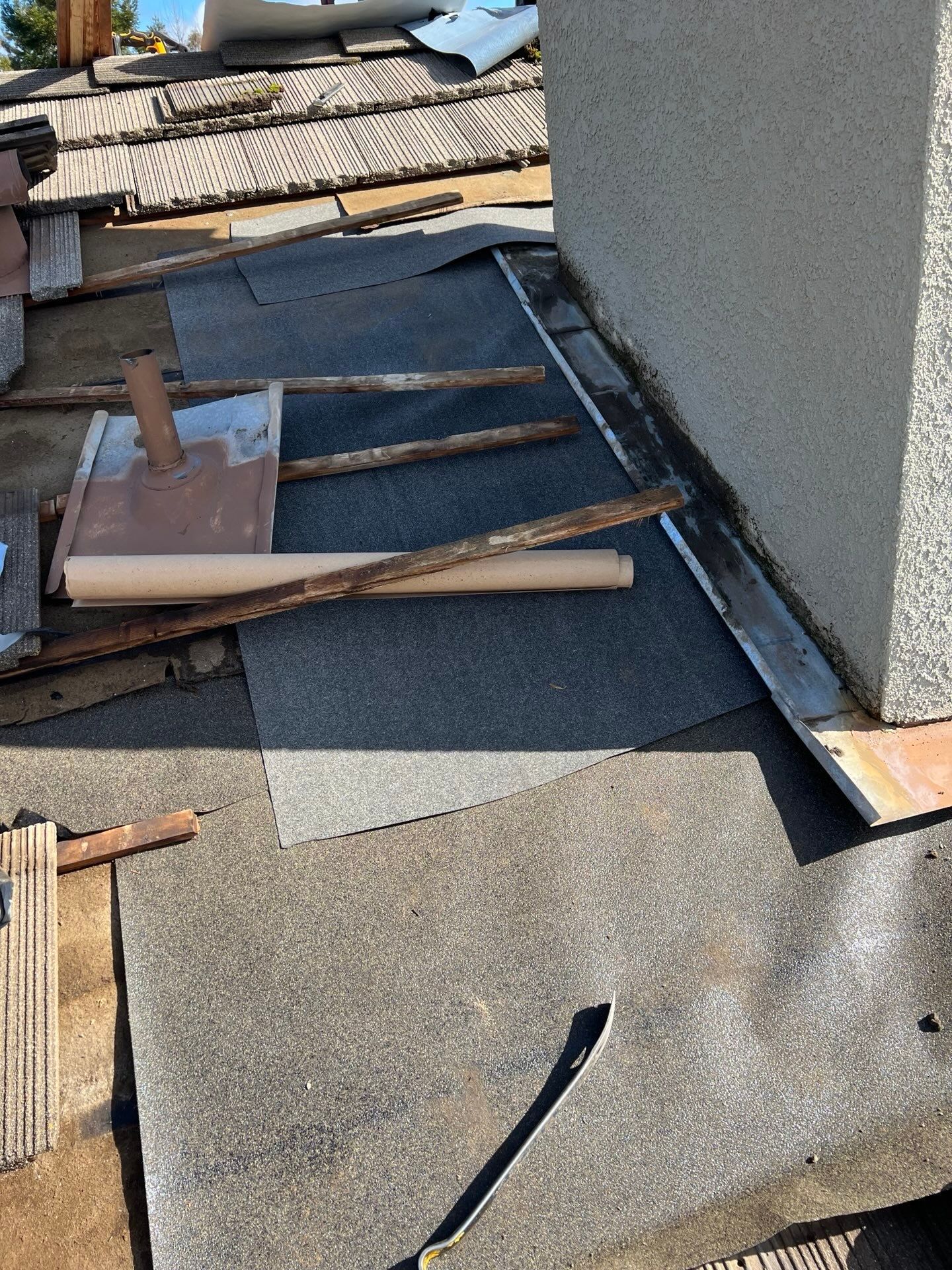

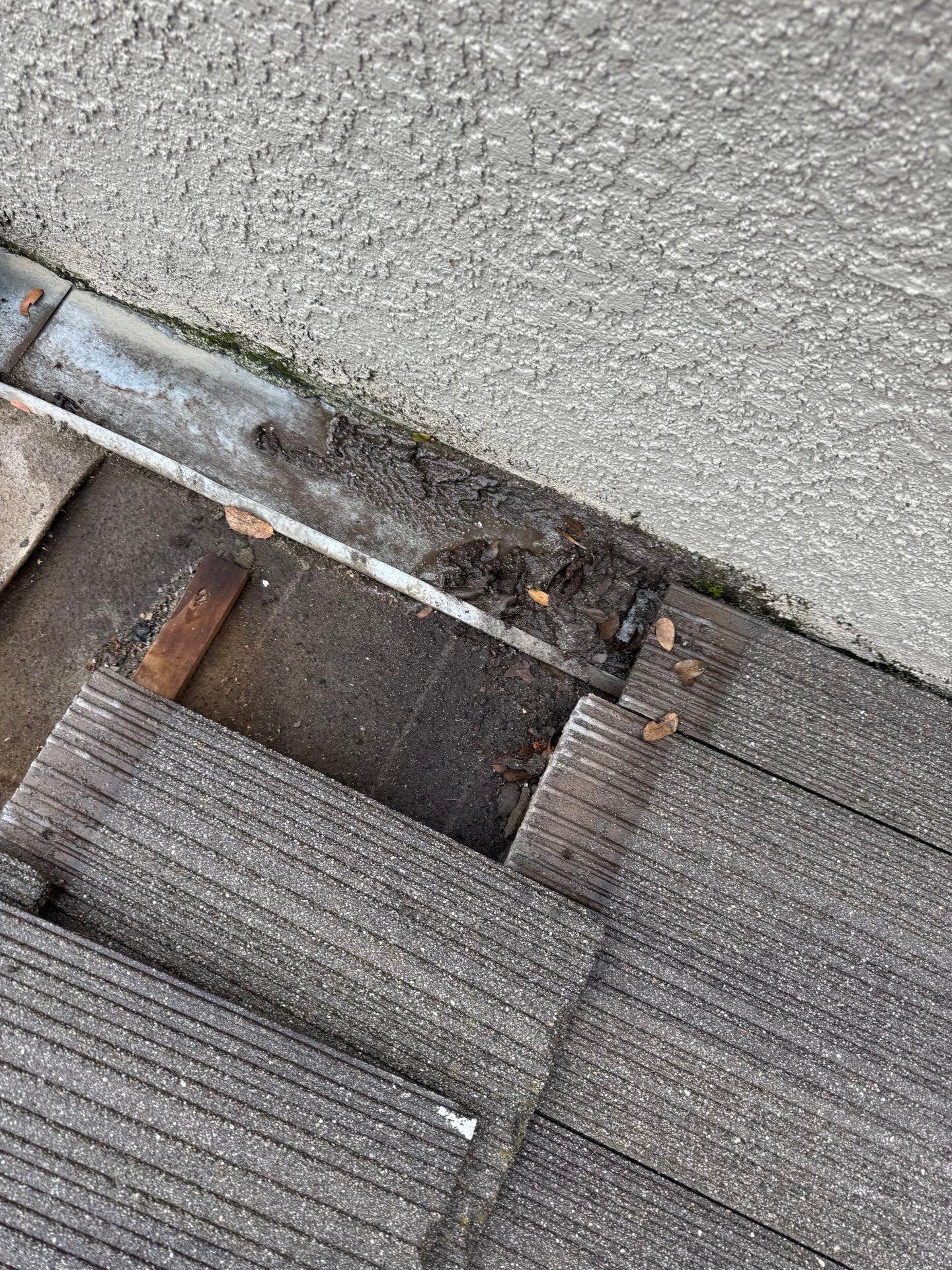

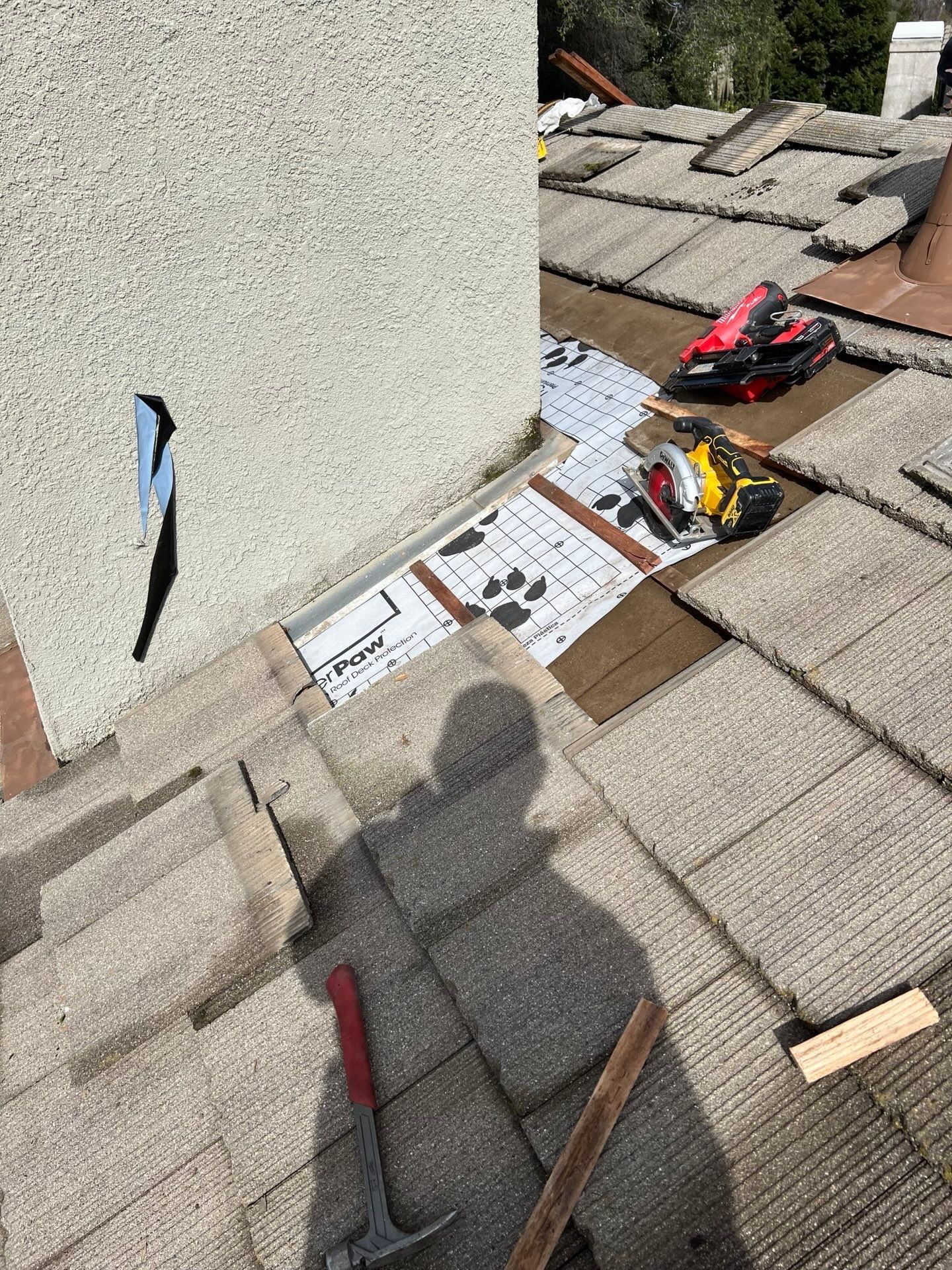

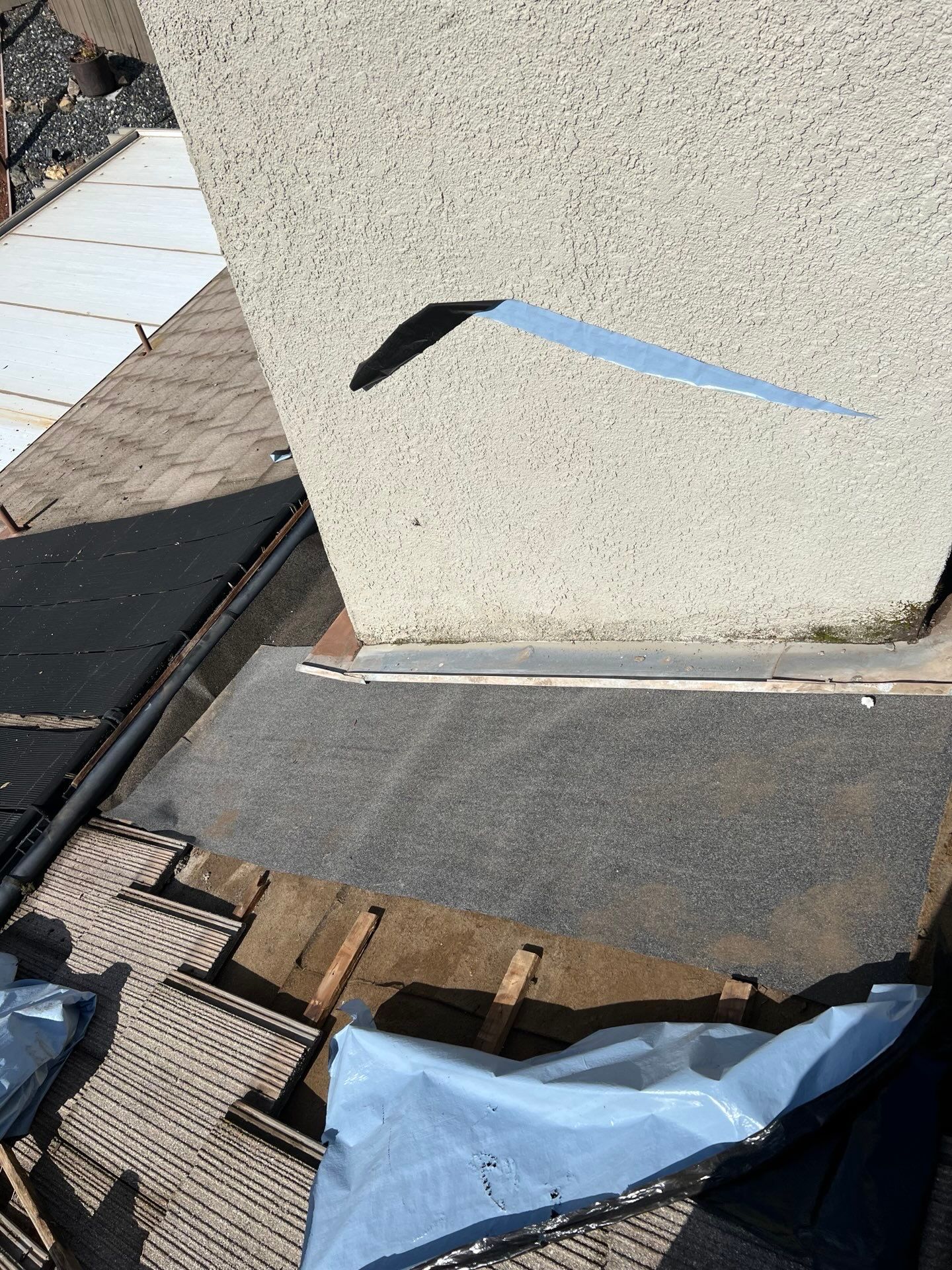

With the deck prepped, our technicians cleaned and inspected the existing chimney flashing, scraping away old, failing sealants to guarantee a tight fit for the new materials. We then installed a high-temperature Ice and Water Shield around the chimney base. This self-adhered membrane was expertly integrated with the surrounding flashing to create a continuous, impenetrable watertight seal against the masonry.
"We take pride in offering Auburn home owners honest, reliable roofing solutions. Not every roof issue can be solved with a quick fix—sometimes, a complete structural tear-off and thorough dry rot repair is the smartest, safest, and most cost-effective move for the long-term health of your home."
— The Shield Guard Team

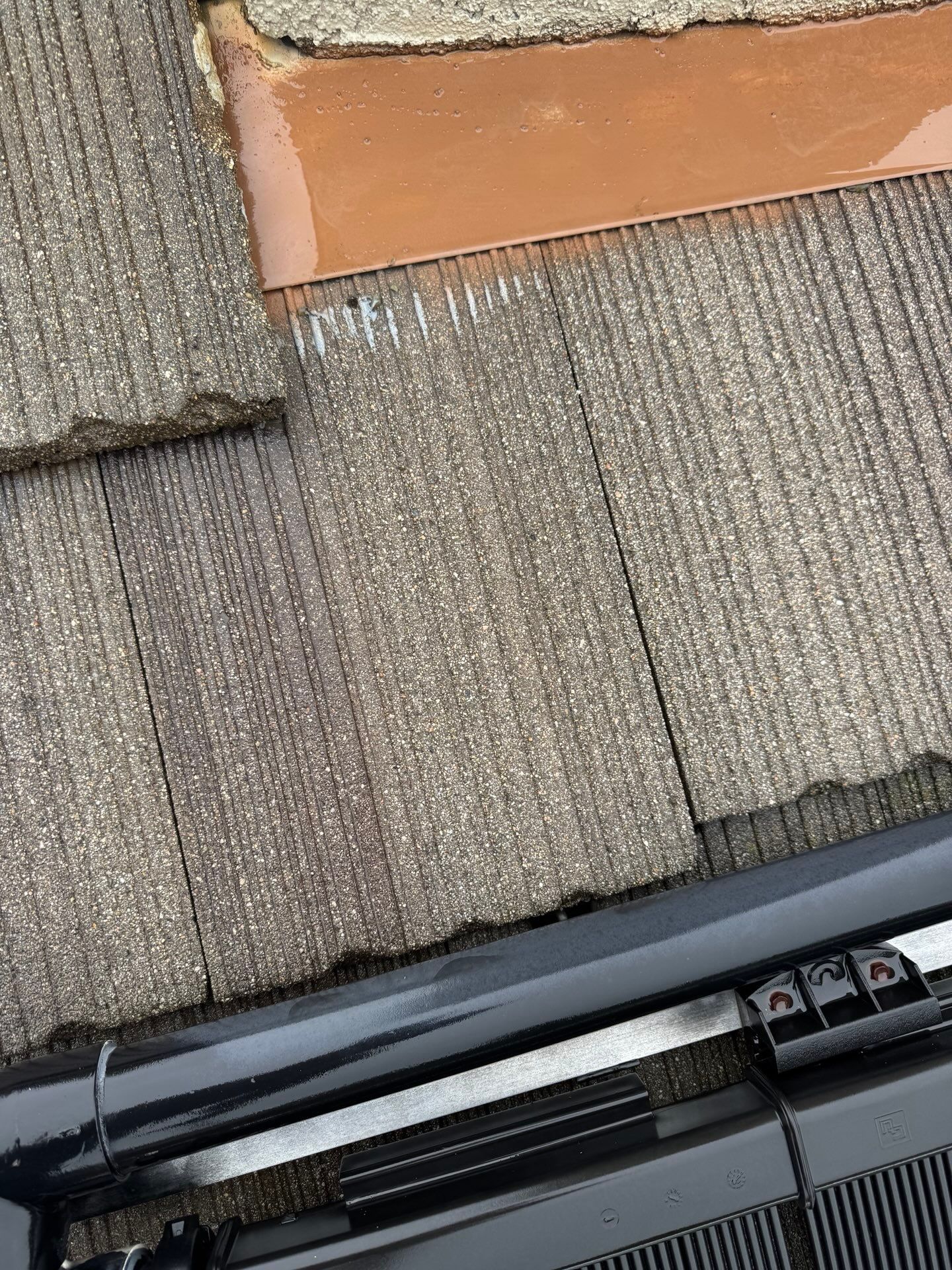

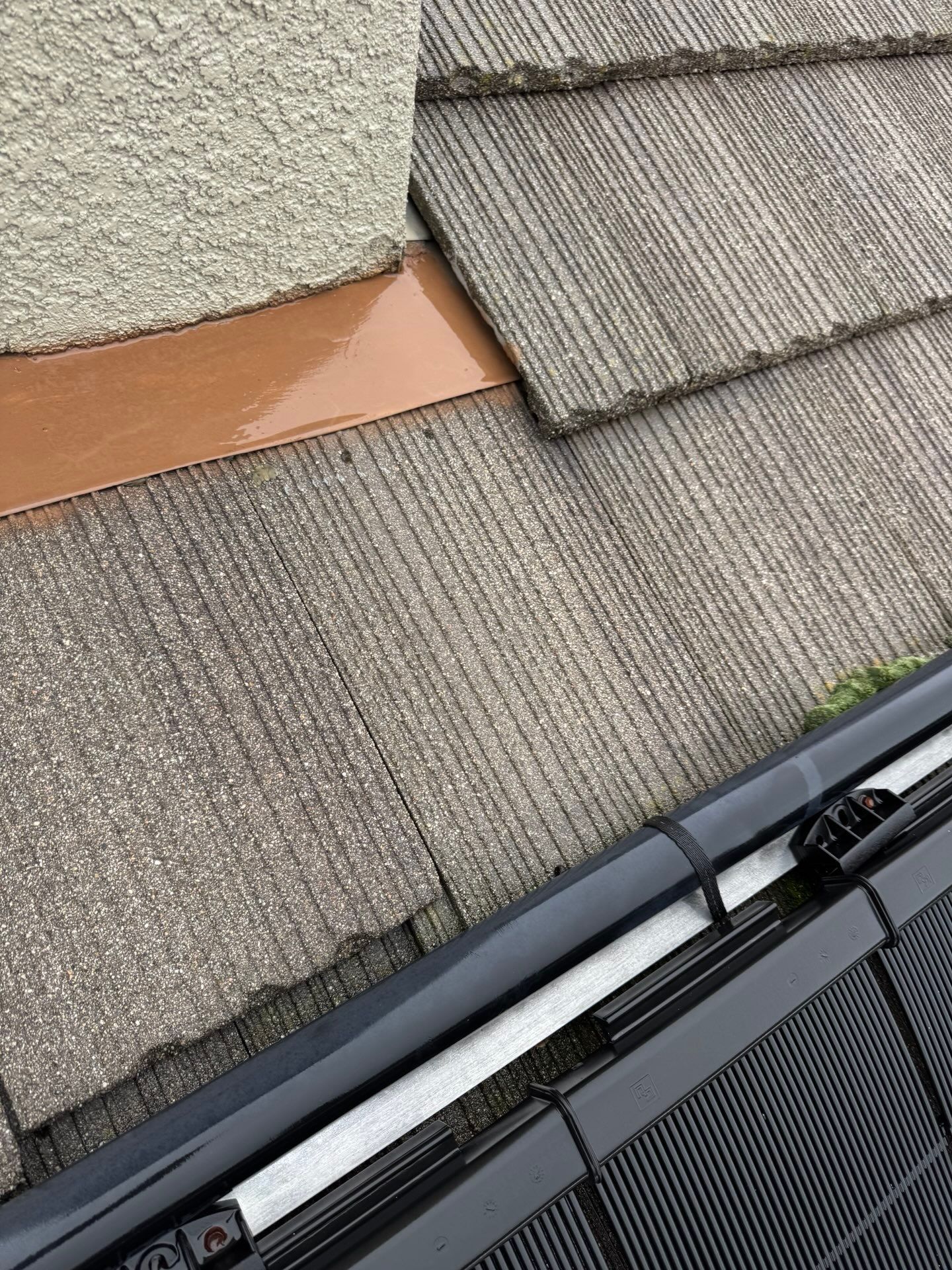

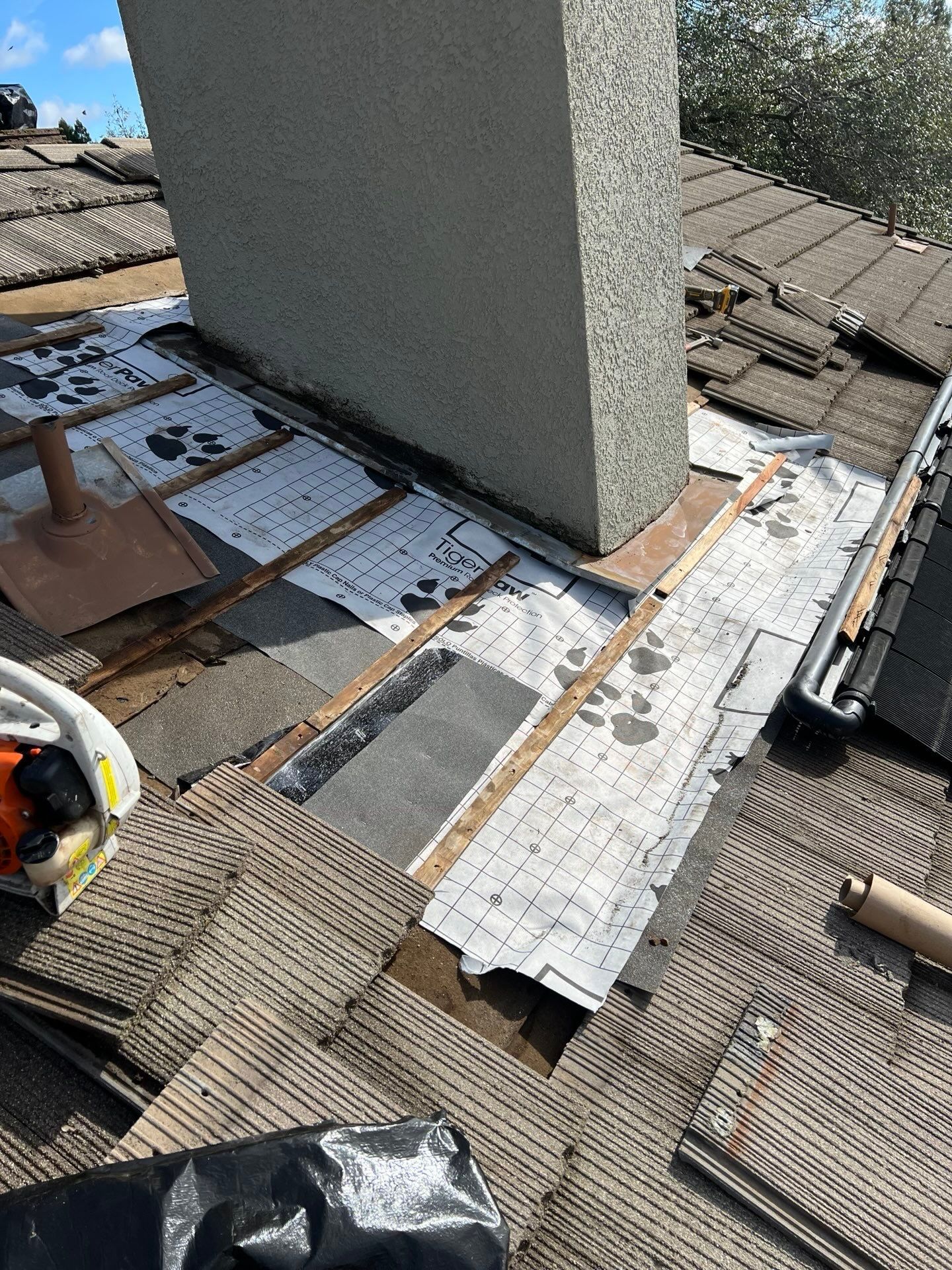

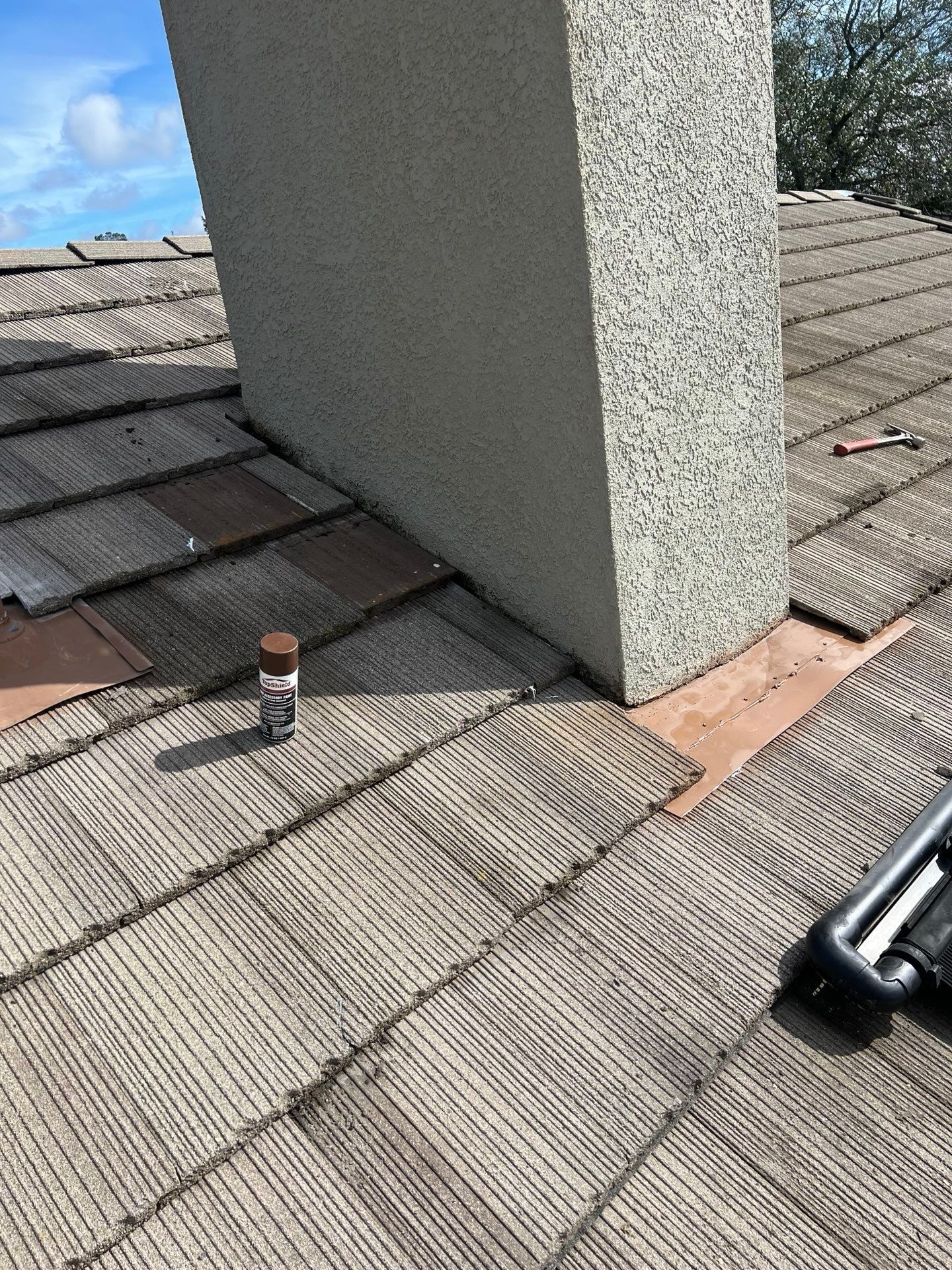

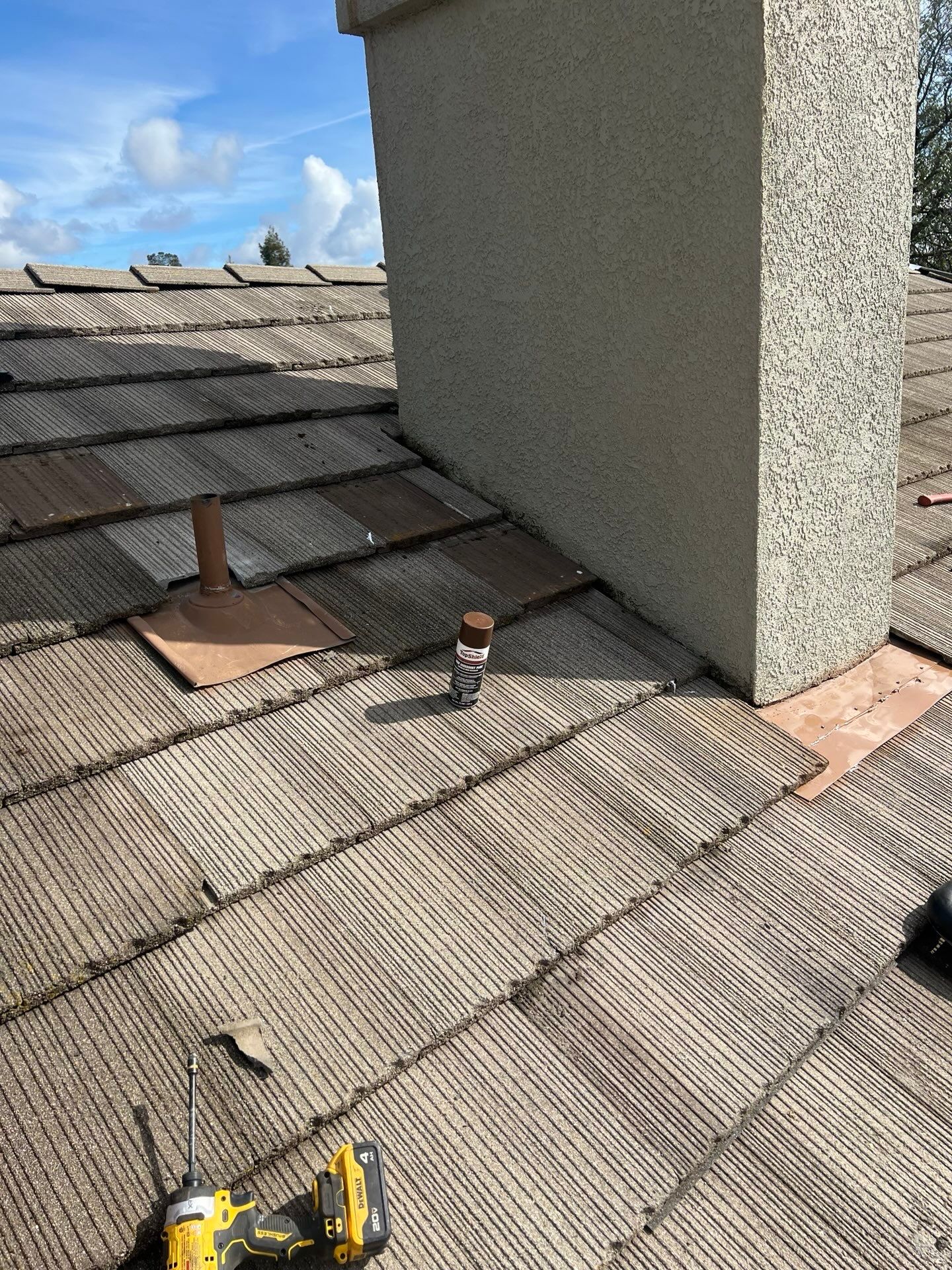

Following the intensive waterproofing phase, our team moved to rebuild the roof's structural grid. We installed fresh wooden battens over the newly applied membrane, meticulously spacing and leveling them to match the surrounding roof structure. The previously removed concrete tiles were then re-installed and secured strictly to manufacturer specifications. This step was crucial for preserving the home's aesthetic uniformity while reinforcing its defense against high winds and rain. The chimney roof leak repair in Auburn, CA concluded with a comprehensive final inspection of the work area, verifying that the flashing was seated perfectly and all tiles were correctly interlocked.
